175_kHz_TO_1515_OR_3515_kHz

Published:2009/7/15 5:12:00 Author:Jessie | From:SeekIC

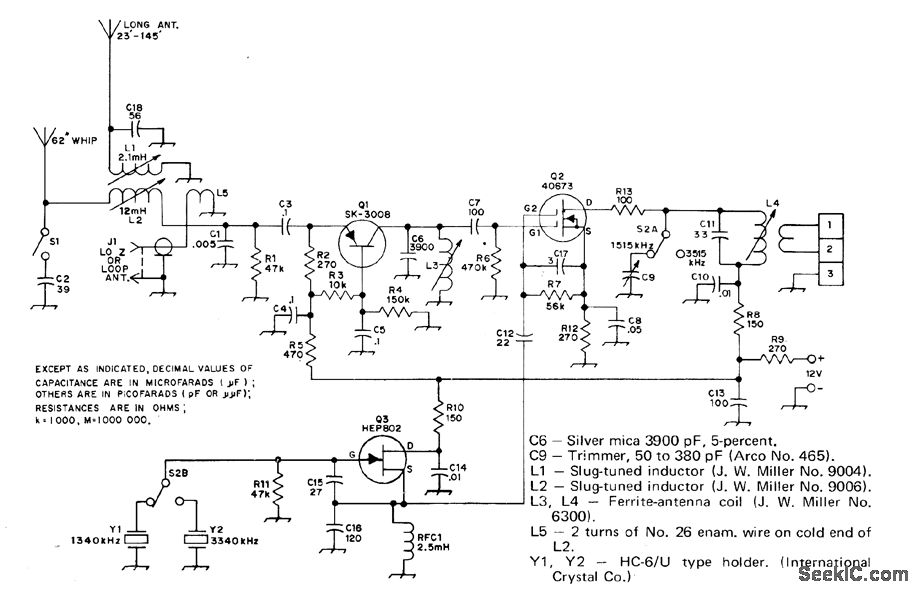

Crystal-controlled VLF converter covering 1750-meter band gives choice of two outputs, selected by S2, for communication or broadcast receiver. Tuning range is 160 to 190 kHz. Connect general-coverage receiver to IF output terminals with length of coax. -J. V. Hagan, A Crystal-Con-trolled Converter and Simple Transmitter for 1750-Meter Operation, QST, Jan. 1974, p 19-22.
