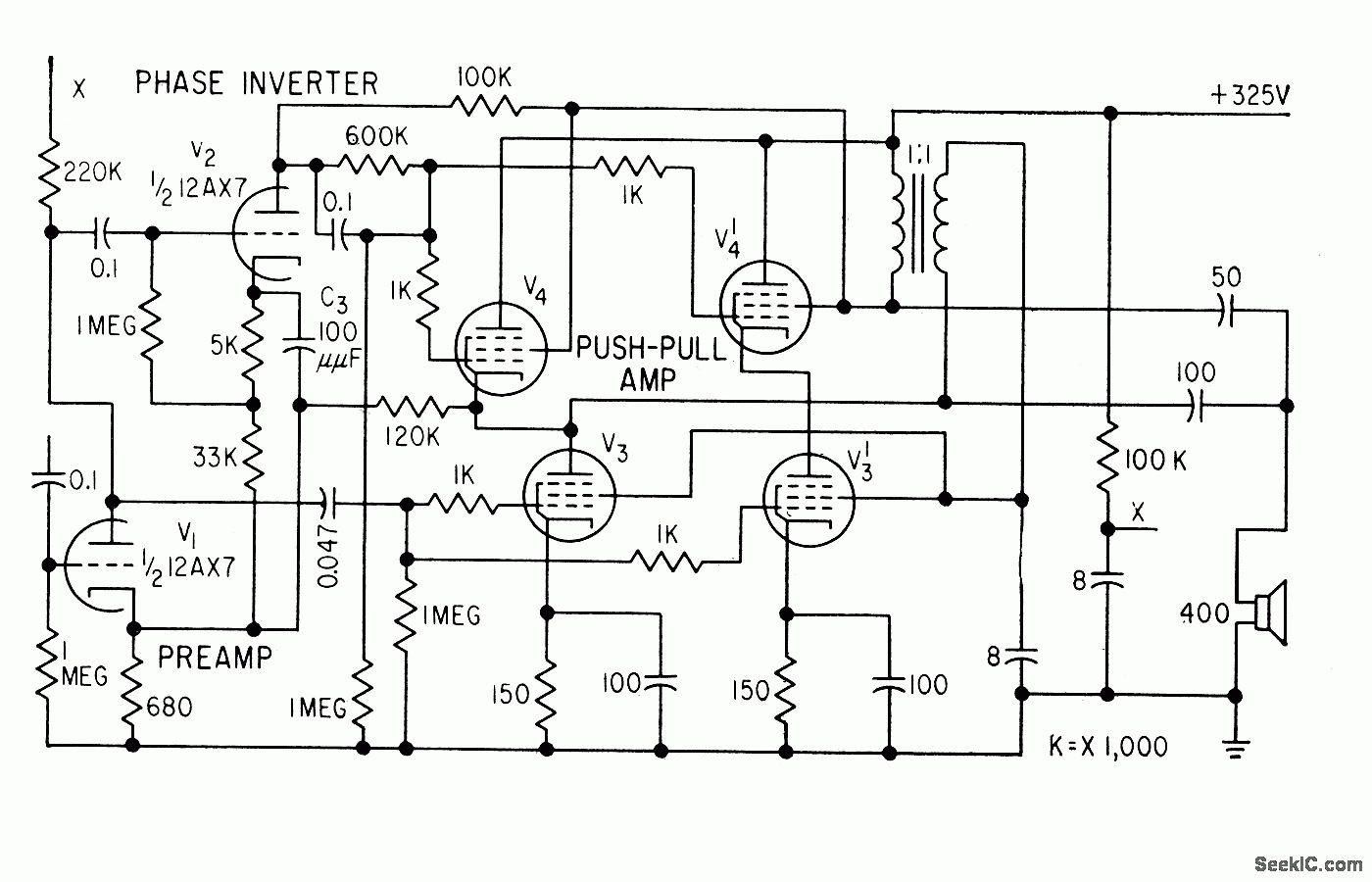

20_W_SINGLE_ENDED_PUSH_PULL_OUTPUT

Published:2009/7/14 4:10:00 Author:May | From:SeekIC

Doubling number of output power tubes doubles ower output and halves loudspeaker impedance requirement. Separate cathode R-Cassembly for each pair of output tubes is recommended, but only one double choke isrequired. All pentodes are 6CW5.-J.Rodrigues De Miranda, Push-Pull Amplifiers DriveSpeaker Directly, Electronics, 31:29, p 76-79.
