30_MHz_PF_amplifier_using_an_ECG703A_IC

Published:2009/7/20 6:27:00 Author:Jessie | From:SeekIC

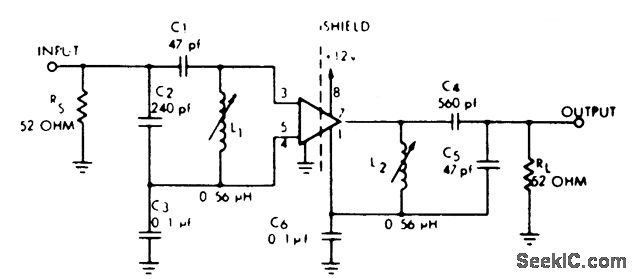

30 MHz PF amplifier using an ECG703A IC. The input signal is coupled through tank L1-C1-C2 to the ECG703A. Capacitors C1 and C2 form an impedance matching network. Network L2- C4- C5 coupled the output signal to the load. Use a shield between the input and output to prevent spurious oscillations (courtesy GTE Sylvania Incorporated).
