AN7113S Audio power amplifier circuit diagram

Published:2011/8/11 2:21:00 Author:Rebekka | Keyword: audio power amplifier | From:SeekIC

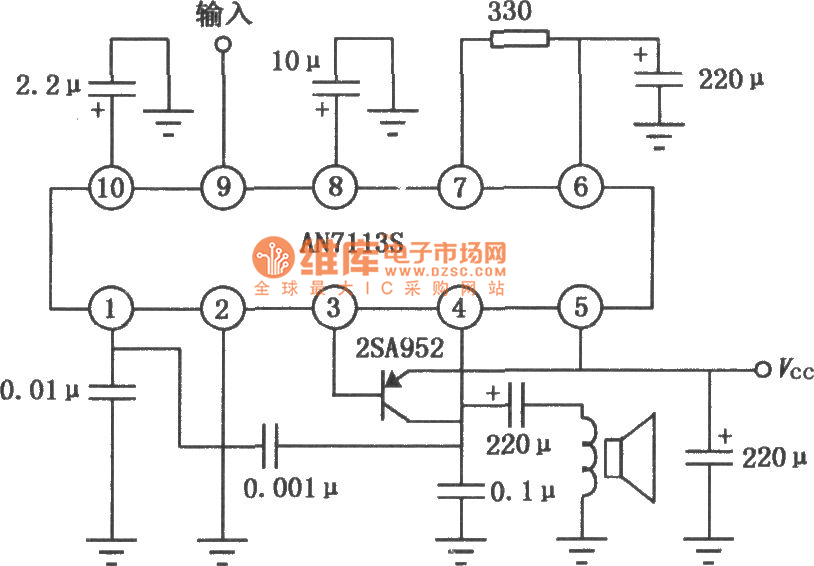

AN7113S is an audio power amplifier circuit with 10-pin dual flat package. The working power supply voltage is 1．8～4．5V. There isfew external components in the circuit. Its quiescent current can be adjusted by different loads. The circuit is suitable for low micro-radio or the power amplifier of tape recorders. The max power supply voltage of AN7113S is VCC=4．5V. Power dissipation PD=360mW(T=25℃) is available. AN7113S Audio power amplifier circuit diagram is shown as below.
