BA335-the integrated circuit of audio LEV sensors

Published:2011/5/17 1:22:00 Author:Borg | Keyword: integrated circuit, audio LEV sensors | From:SeekIC

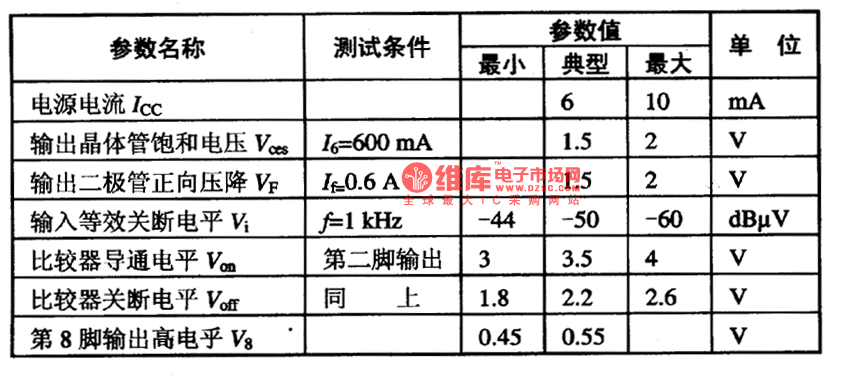

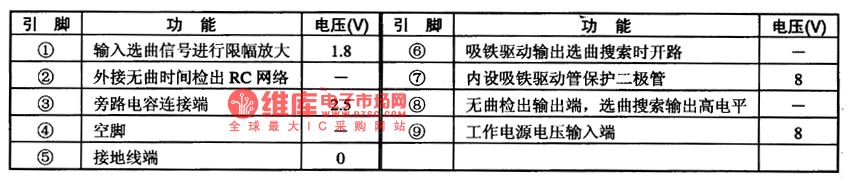

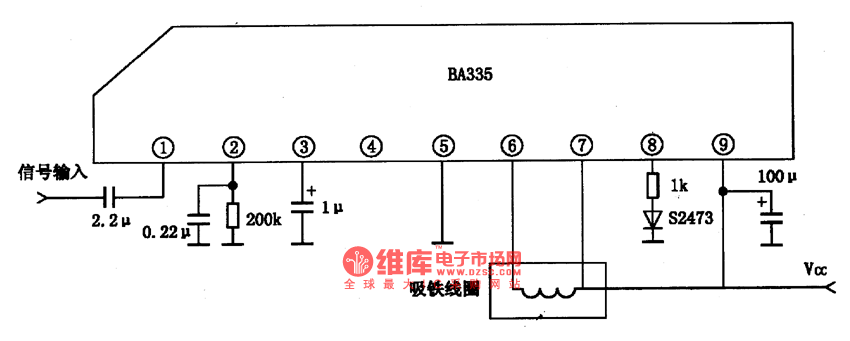

BA335 is an integrated circuit of audio LEV sensors by Toyo Power Tool Corp., Japan, which is usually used in cassette radios as tape end detection, recording programme interval detection and the like.the internal circuit and pin functions of BA335 BA335 is a detection amplifier consisting of audio amplifiers, delay capacity comparators and driving stages. When the voltage and temperature are changing, the delay capacity of the comparator is still the same. The NPNs and diodes of the driving stage can output the maximum current-driven inductive load of 750mA.
