BA3828-the integrated circuit of electrical channel-selecting presetting

Published:2011/5/14 3:23:00 Author:Borg | Keyword: integrated circuit, channel-selecting | From:SeekIC

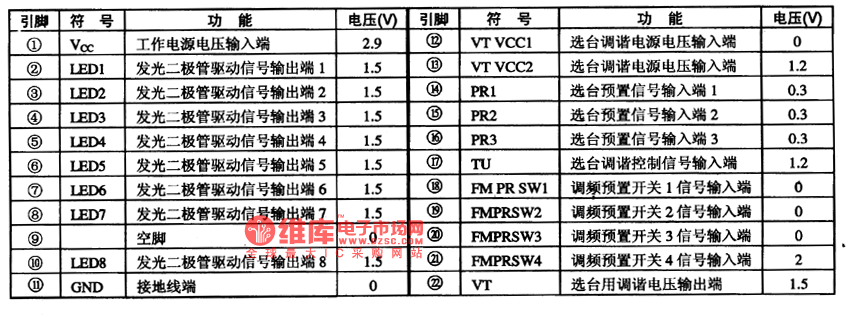

BA3828 is an integrated circuit of electrical channel-selecting presetting produced by Toyo Corp.,Japan, which is widely used in domestic stereos, car stereo and all kinds of high-class walk-man systems.BA3828 contains tuning power supply circuits, channel-selecting presetting circuits, FM presetting switch circuits, channel-selecting tuning voltage circuits, LED driven control circuit and other additional function circuits. The IC is in 22-lead dual in-line package, whose pin functions and data are listed in Table 1.
