BA5983F-E2- the integrated 4-channel servo-driven circuit

Published:2011/5/13 11:45:00 Author:Borg | Keyword: 4-channel, servo-driven | From:SeekIC

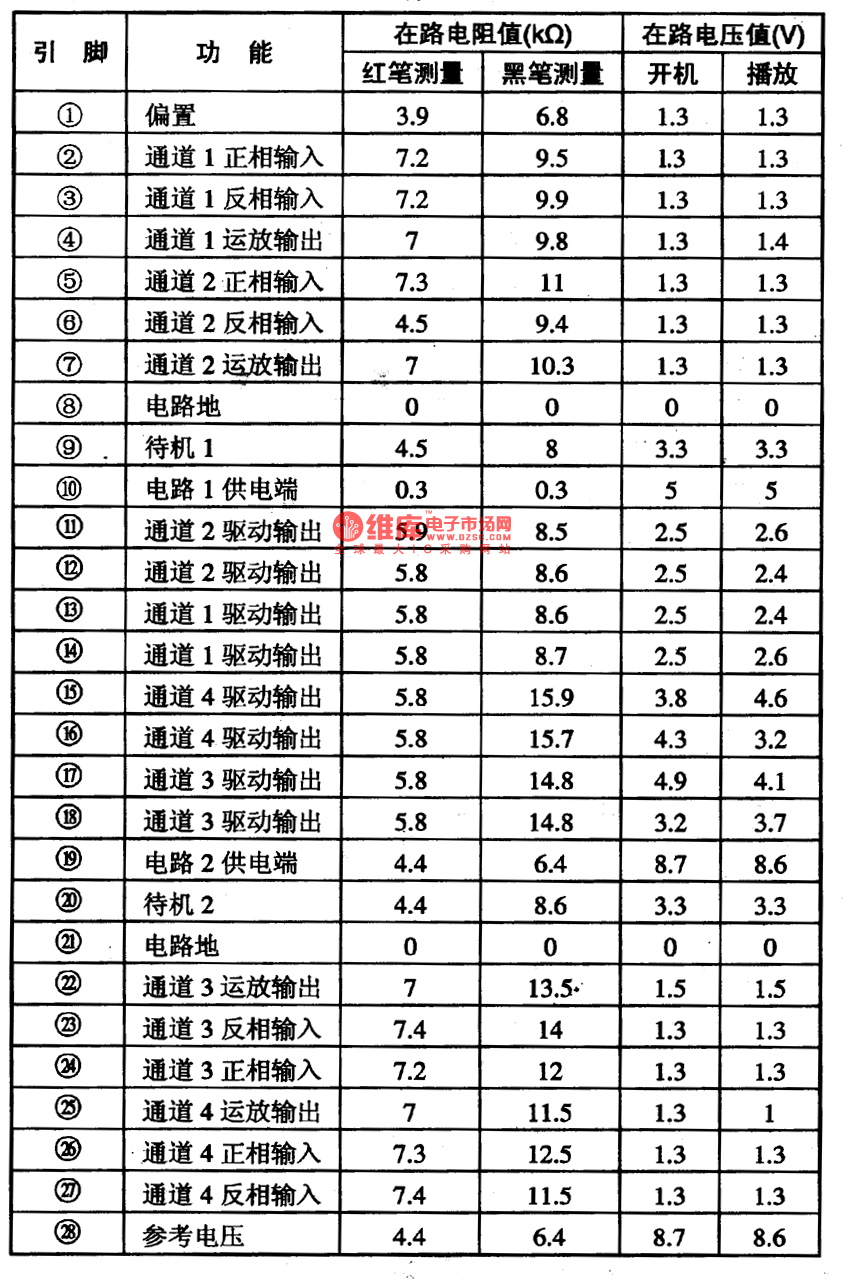

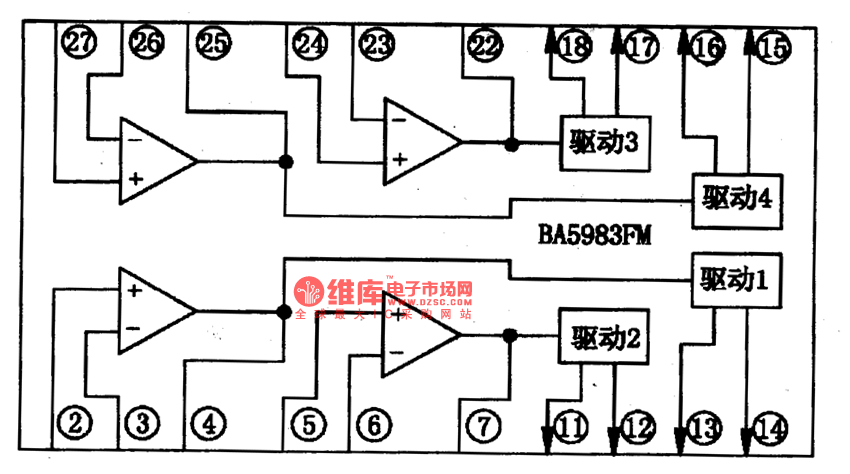

BA5983F-E2 is an integrated 4-channel servo-driven circuit, which can convert servo control signals into drive voltage to drive the executing parts of DVD player servomechanisms.The internal circuit of BA5983FM一E2 is as shown in Figure 1, which is in 28-lead flat package with cooling fins. The pin functions and data are listed in Table 1. Figure 1 the internal circuit of BA5983FM一E2 Table 1 pin functions and data of BA5983FM一E2
