BA6196FP-an Servo-driven Integrated Circuit

Published:2011/5/13 0:53:00 Author:Borg | Keyword: Servo-driven, Integrated Circuit | From:SeekIC

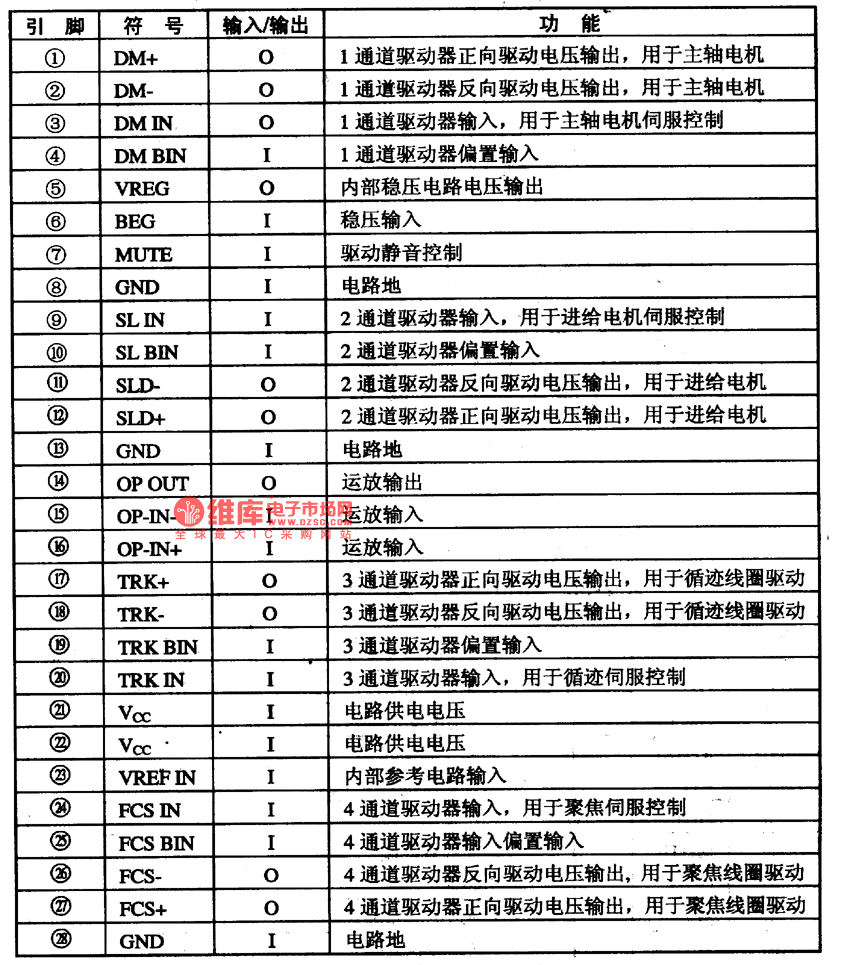

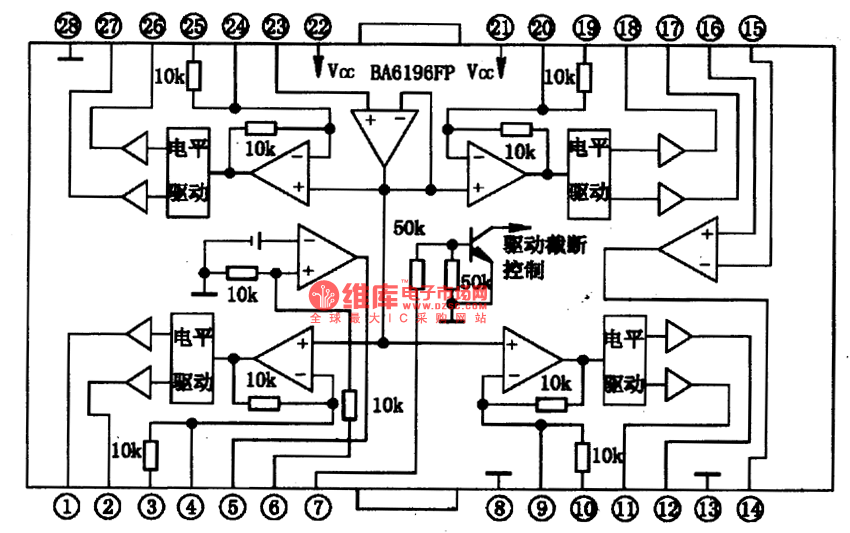

BA6196FP is a motor-driven integrated circuit produced by Toyo Corp., which is widely used in VCD,SVCD,CVD and DVD players.1.The internal circuitBA6196FP contains 4-channel BTL drive circuit, which can switch servo-control voltage on laser heads into dual drive circuit through LEV to drive the executing parts (focus and tracking coils, feed and spindle motor and so on)in laser head servomechanisms. The internal circuit of it is as shown in Figure 1. 2.Pin functions
