BA6208/F-Servo-driven Integrated Circuit

Published:2011/5/12 23:06:00 Author:Borg | Keyword: Servo-driven, Integrated Circuit | From:SeekIC

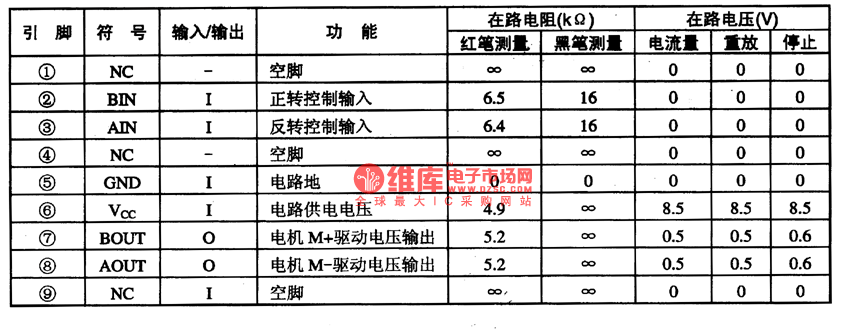

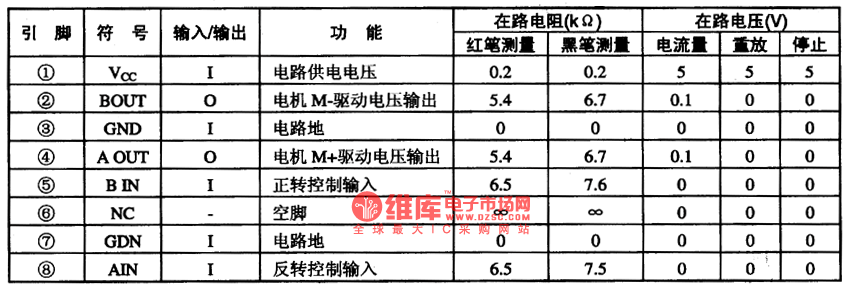

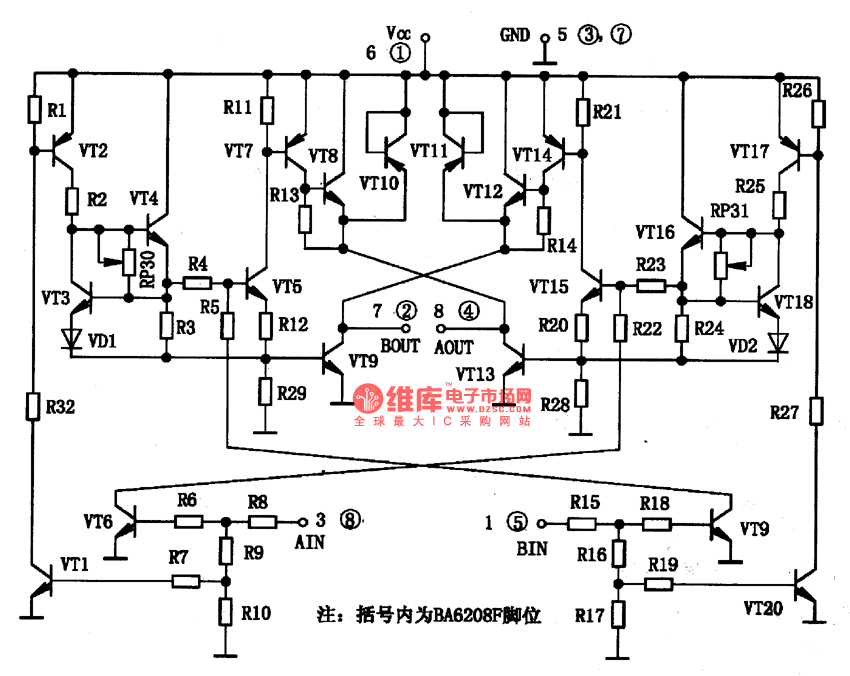

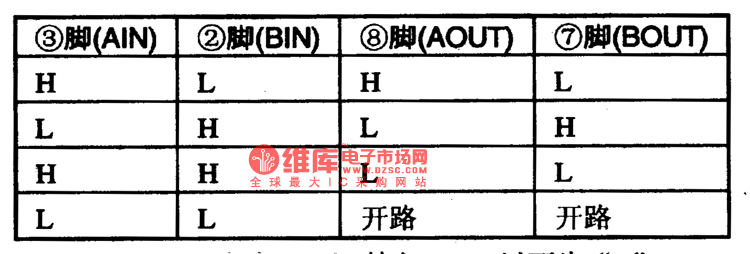

BA6208/BA628F are motor-driven integrated circuit produced by Toyo Corp., which is used in CD and VCD players. 1.The internal circuit BA6208/F can provide standard 10mA drive circuit, whose internal braking circuit could be used to brake motors, and it is also installed with 200mA absorbing circuits of surge currents. The typical application circuit is as shown in Figure 1. 2.pin functions and data BA6208/F is packaged in two ways, of which BA6208 is in 9-lead single in-line package, while BA6208F is in 8-lead PQFP.
