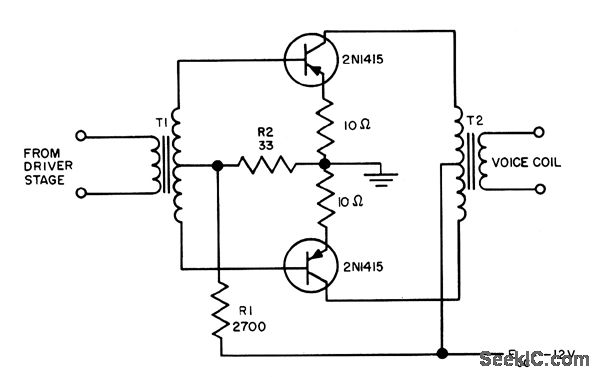

BASIC_CLASS_B_PUSH_PULL_OUTPUT

Published:2009/7/14 22:30:00 Author:Jessie | From:SeekIC

Design procedures are given. Resistor in emitter leads prevent thermal runaway when ambient temperature is below 55℃ .- TransistorManual , Seventh Edition, General Electric Co.,1964,p 242.
