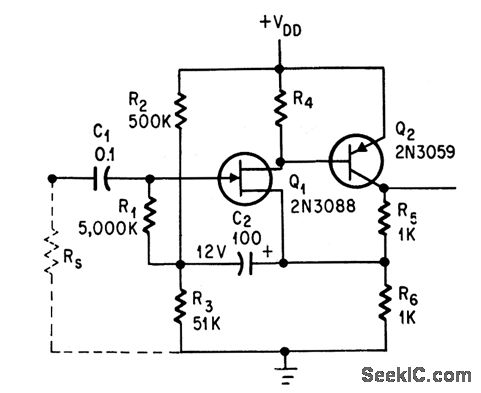

BOOTSTRAP_FET

Published:2009/7/15 2:00:00 Author:Jessie | From:SeekIC

Input impedance is high at low frequencies (180 meg at 10 cps), butdrops to 3 meg at 10 kc. High collector current contributes to high over-all noiselevel.-B. Smith, Low. Noise FETs Sound Good To Circuit Designers, Electronics, 37:31,p 58-62.
