Balanced_modulator_circuit_using_an_MC1596G

Published:2009/7/20 7:13:00 Author:Jessie | From:SeekIC

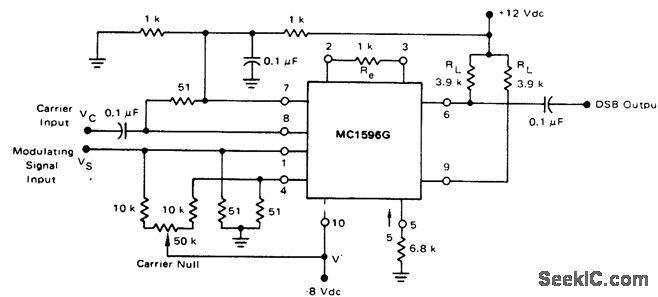

Balanced modulator circuit using an MC1596G. For a maximum modulating signal input of 300 mV RMS, the suppression of spurious sideband is typically 55 dB at a carrier frequency of 500 kHz (courtesy Motorola Semiconductor Products Inc.).
