CX2O111--the Am/Fm radio integrated circuit

Published:2011/7/15 19:14:00 Author:Borg | Keyword: Am/Fm radio, integrated circuit | From:SeekIC

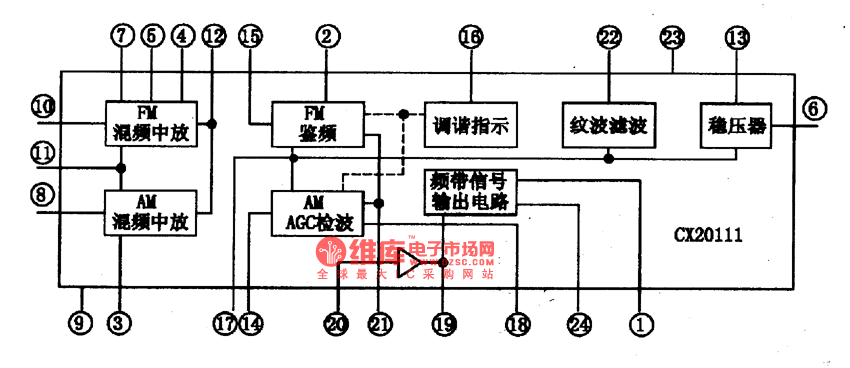

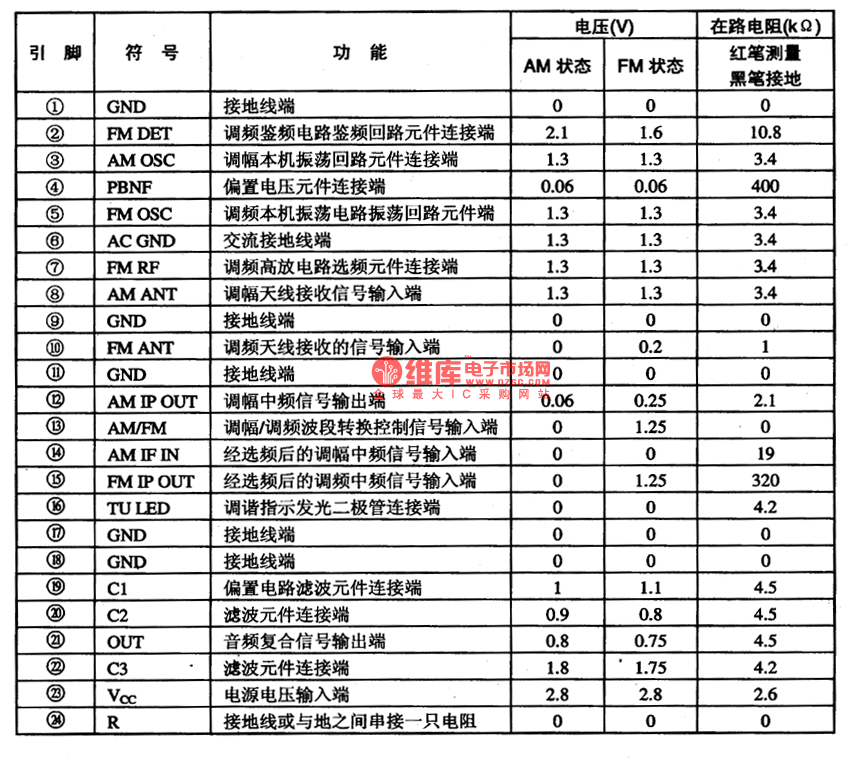

CX2O111 is the AM/FM radio integrated circuit produced by Sony, which is used in radios, recorders, compound stereos and so on.1.the internal circuit and pin functions of CX2O111CX2O111 includes all the circuits of the AM/FM and efficiency, mix, INTREQ and detected wave output audio signals. This IC is in 24-pin dual line flat package, whose internal circuit is shown in Figure 1 and the pin functions and data are listed in table 1. Figure 1. the internal circuit of CX2O111
