DIRECT_REPRODUCE_CIRCUIT

Published:2009/7/24 4:31:00 Author:Jessie | From:SeekIC

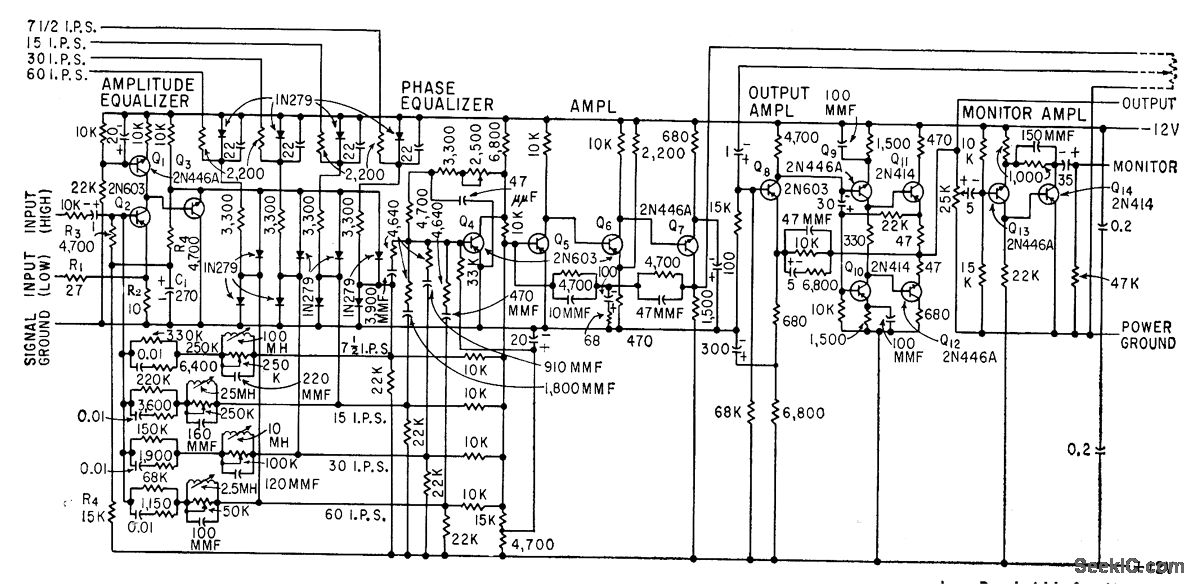

Switching and equalization networks extend upper frequency limit to 250 kc for instrumentation tape. Amplifier section provides voltage gain of 14 db and output impedance below 50 ohms, for driving long, low-impedance lines.-D. R, Steele, More Bandwidth for Magnetic Recorders, Electronics, 33:2, p 44-47.
