DRIVER_FOR_FADIRA

Published:2009/7/14 3:54:00 Author:May | From:SeekIC

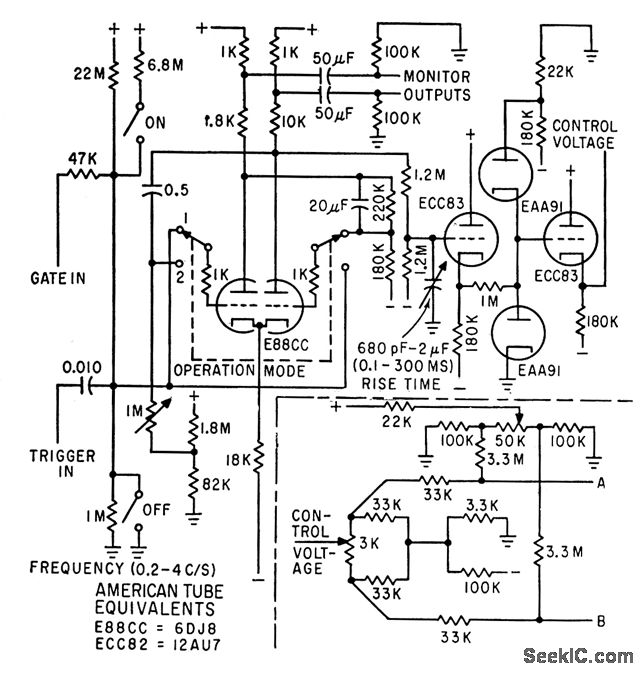

can be operated either in free-funning mode or in triggered orgated mode to produce Control voltage that will drive electronic fader. Correction network at lower right transfers control voltage to fader and minimizes switchingtransient.-E .de Boer, Electronics, Fader for Auditory Research,Electronics, 33:50,p 85-87.
