DUAL_OUTPUT_I_F

Published:2009/7/24 3:10:00 Author:Jessie | From:SeekIC

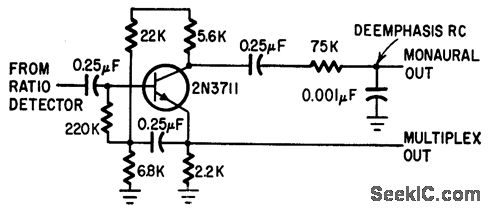

Final i-f stage of stereo f-m set has two outputs, to permit independent feed of monaural f-m.-S. Messin and T. E. Nawalinski, A Solid State Stereo Set Built in Modules, Electronics, 38:16, p 88-92
