EIGHI_TRANSISTOR_MVBR

Published:2009/7/24 4:51:00 Author:Jessie | From:SeekIC

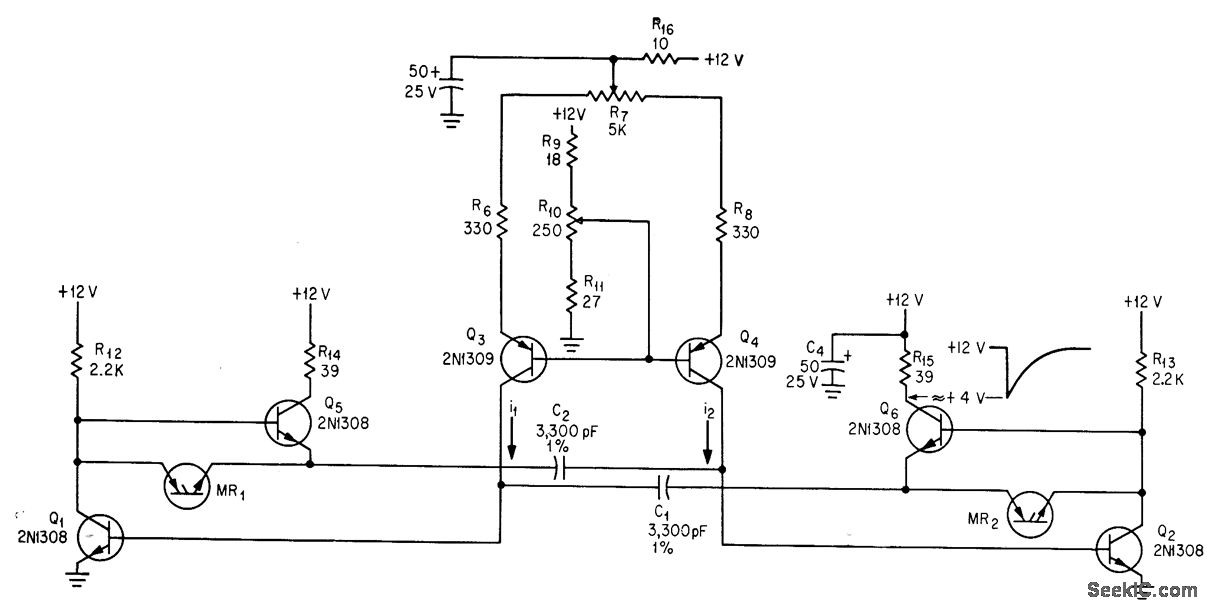

Emitter-followers Q5 and Q6 increase gain by providing low. impedance path for recharging timing capacitors. R7 controls mark/space ratio and R10 controls frequency.-C. J. Dakin, Novel Multivibrators Test Tape Transports, Electronics, 37:7, p 40-43.
