FET_OUTPUT_STAGE

Published:2009/7/15 2:56:00 Author:Jessie | From:SeekIC

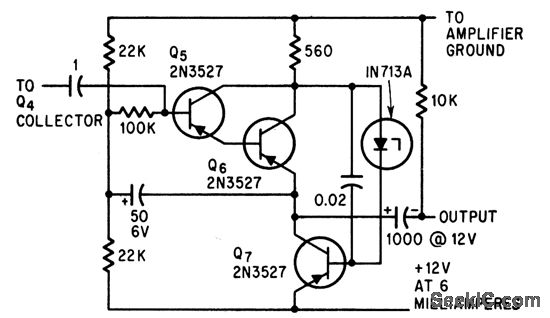

Bootstrapped input, Darlington driver, and White follower give voltage gain of one, input impedance of 1 meg, and output impedance of 10 ohms.-B. Smifh, Low-Noise FETs Sound Good To Circuit Designers, Electronics, 37:31, p 58-62.
