General_purpose_voltage_preamplifier

Published:2009/7/20 4:42:00 Author:Jessie | From:SeekIC

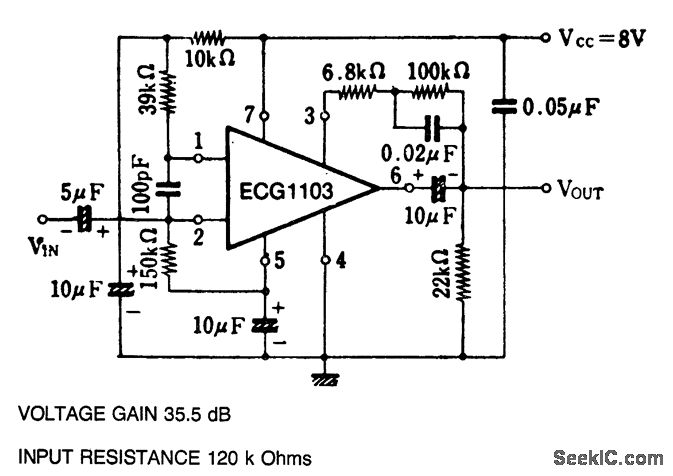

General-purpose voltage preamplifier. Typical voltage gain is 35.5 dB. Input resistance is 120K. The EGG1103 is a 7-pin module (courtesy GTF Sylvania).
