Hi_fi_tone_control_with_high_impedance_input

Published:2009/7/22 5:27:00 Author:Jessie | From:SeekIC

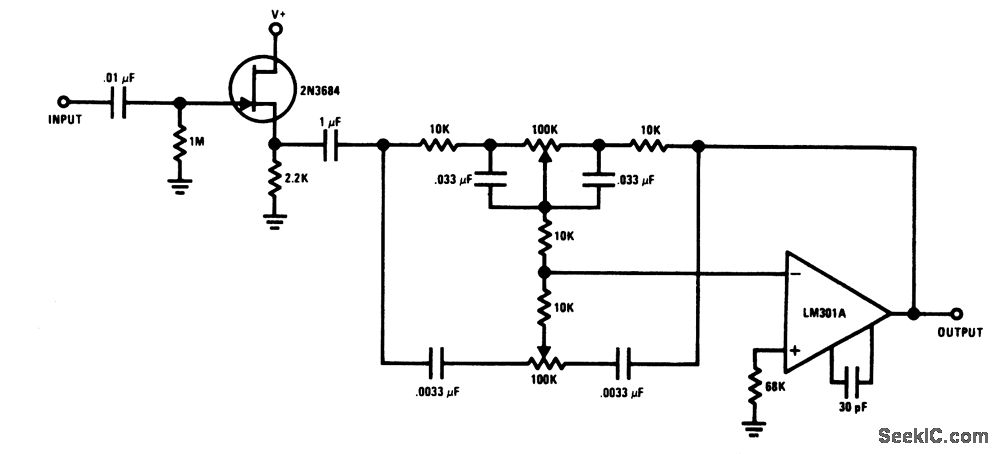

The JFET provides both high input impedance and low noise to buffer an op-amp feedback-type tone control.
