KA2211 audio IC circuit

Published:2011/6/30 19:24:00 Author:TaoXi | Keyword: audio, IC | From:SeekIC

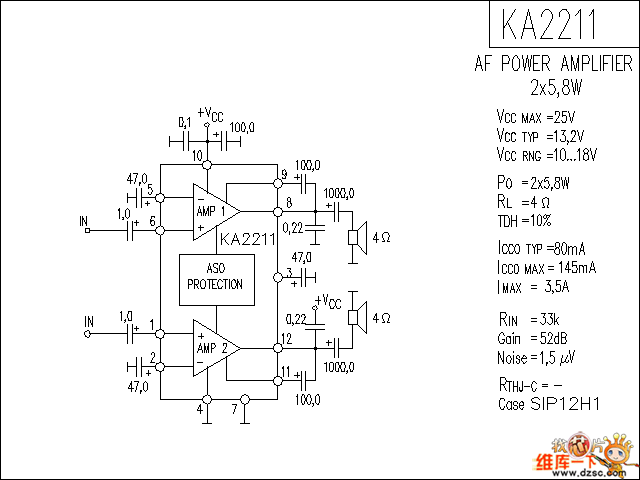

The KA2211 audio IC circuit is as shown in the figure:
