M5112Y 5W Audio power amplifier circuit diagram

Published:2011/8/12 4:20:00 Author:Rebekka | Keyword: 5W, Audio power amplifier | From:SeekIC

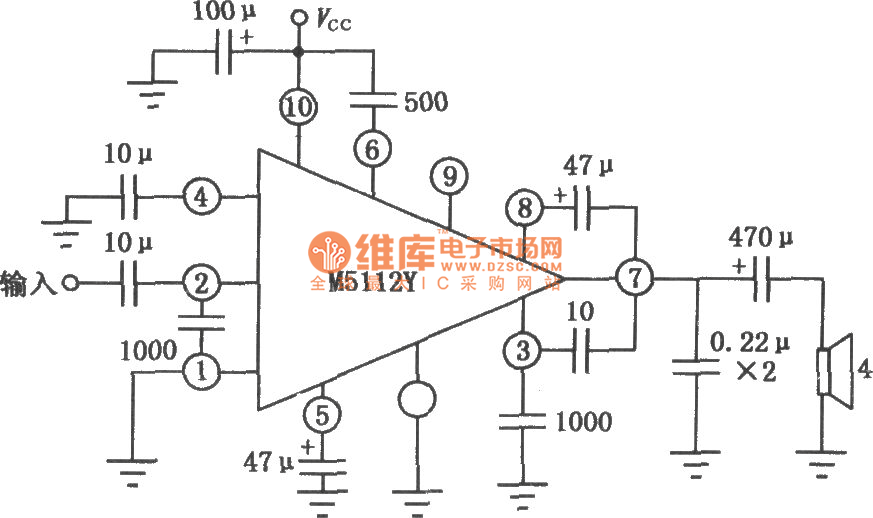

M5112Y is 5W audio power amplifier integrated circuit. The circuit output power is large, less distortion, wide frequency bandwidth. It is suitable for car radio and stereo audio power amplifier device for stereo audio power amplifier. M5112Y 5W Audio power amplifier circuit diagram is shown as below.
