M51131L-audio and microphone sound control integrated circuit diagram

Published:2011/5/8 22:03:00 Author:Nicole | Keyword: audio, microphone, sound control | From:SeekIC

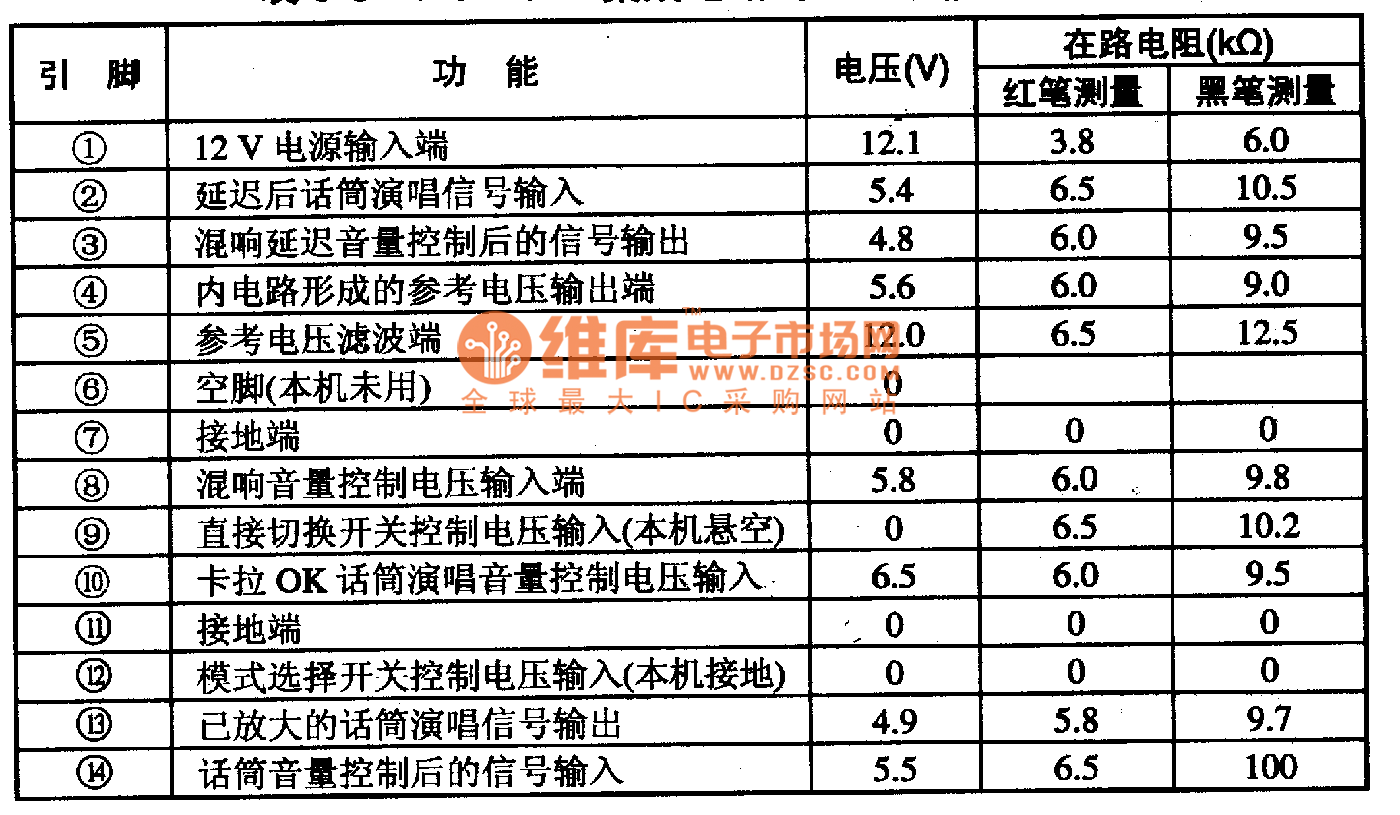

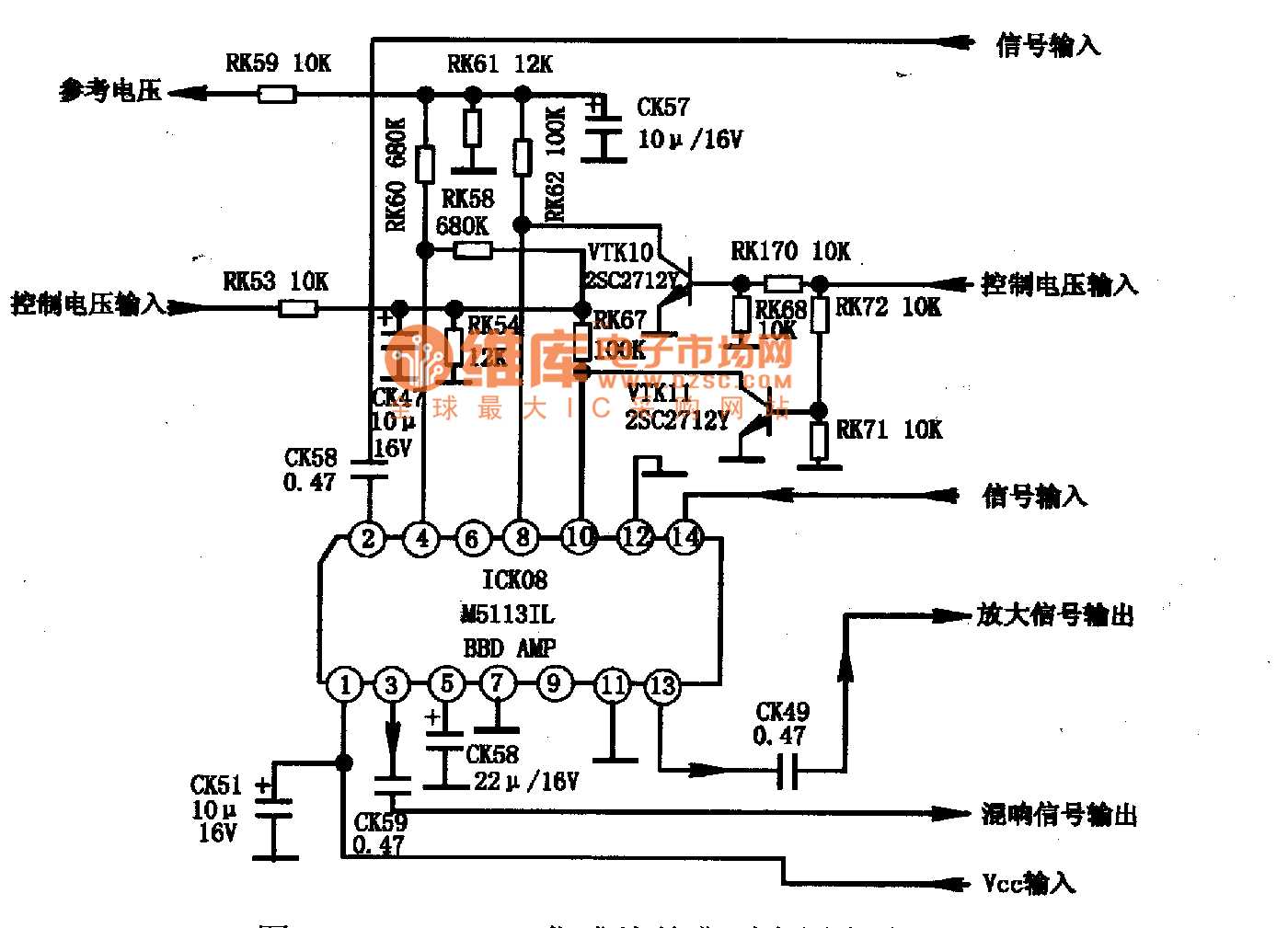

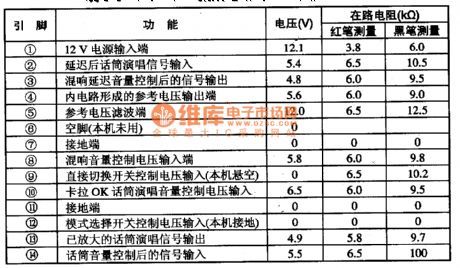

M51131L is a audio and microphone sound control integrated circuit which is produced by Mitsubishi Corp, it is mainly used in TV audio, karaoke audio system. 1. M51131L typical application circuit The typical application circuit of M51131L integrated block is shown in the figure 1-1. This IC adopts single row 14-foot in-line package, the pin function and data of this integrated circuit is shown in the table1. The table is the pin function and data of M51131L integrated circuit The figure1 is the typical application circuit of M51131L integrated block
