M51513L 5.8W Audio power amplifier circuit diagram

Published:2011/8/15 2:17:00 Author:Rebekka | Keyword: 5.8W, Audio power amplifier | From:SeekIC

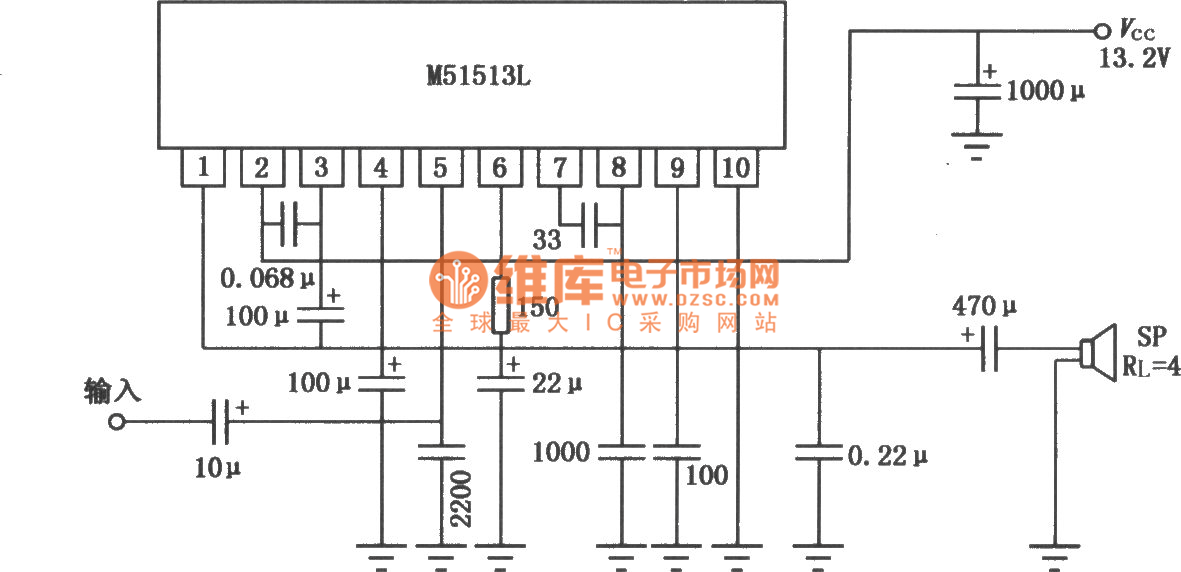

M51513L is theaudio power amplifier IC. It uses 10-pin single in-line plastic package. The features of the two ICs are high voltage gain, large output power and they even work in 2Ω load. The power supply voltage is 9～16V. The output power is 5.8W(Typical), when the power supply voltage is 13.2V, load impedance is 4Ω and distortion is 10％. There are short-circuit protection, thermal cut off, power surge voltage protection etc. in the circuit. It is suitable for the audio power amplifier of car radio, car stereo installation. The typical application circuit of M51513L is shown as below.
