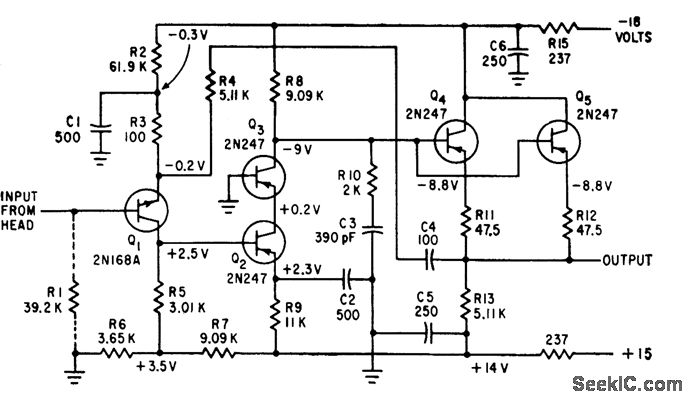

MAGNETIC_TRANSDUCER_PREAMP

Published:2009/7/24 4:31:00 Author:Jessie | From:SeekIC

Gain is constant at 49 within 2% for ac source impedances ranging front 0 to 5,000 ohms, such as magnetic read heads. Gain remains con stunt within 3 db from 10 cps to 1 Mc.-S. R. Parris, Wideband Transistor Preamplifier Handles Low-Resistance Transducers, Electronics, 34:11, p 57-59.
