MC3361B Narrowband FM integrated circuit diagram

Published:2011/5/9 2:14:00 Author:Rebekka | Keyword: Narrowband FM integrated circuit | From:SeekIC

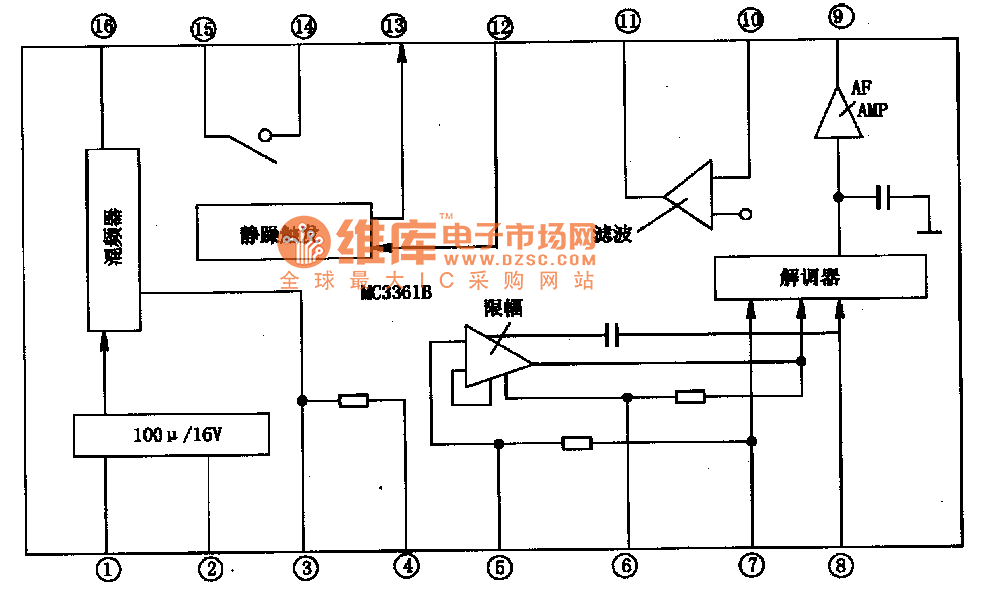

MC3361B type low-power narrowband FM integrated circuit. It is suitable for frequency duplex communication equipment, cordless telephones and remote control applications such as frequency amplifier circuit. MC3361B integrated-circuit block diagram is shown as above. Pin functions and data. 2 MC3361B integrated circuit has two packages: One is the 16-pin dual in-line package; Another way is the surface mount work small 16-pin SMD package. The pin function and data of the IC are listed in Table.
