MIXER_LIMITER

Published:2009/7/23 23:42:00 Author:Jessie | From:SeekIC

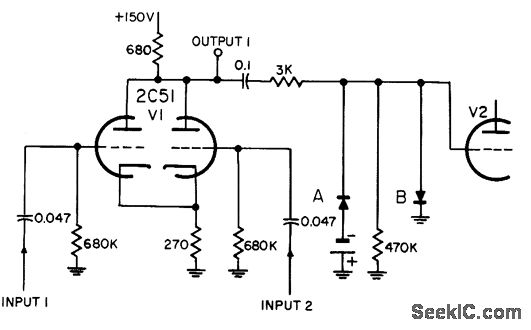

Common-plate mixer uses diode-limiting coupling circuit to nullify adding feature. Bias voltage on diode sets limiting level-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N4-8.
