MN67730MH digital DVD audio decoding integrated circuit

Published:2011/5/5 21:49:00 Author:Sharon | Keyword: MN67730MH, digital DVD, audio decoding, integrated | From:SeekIC

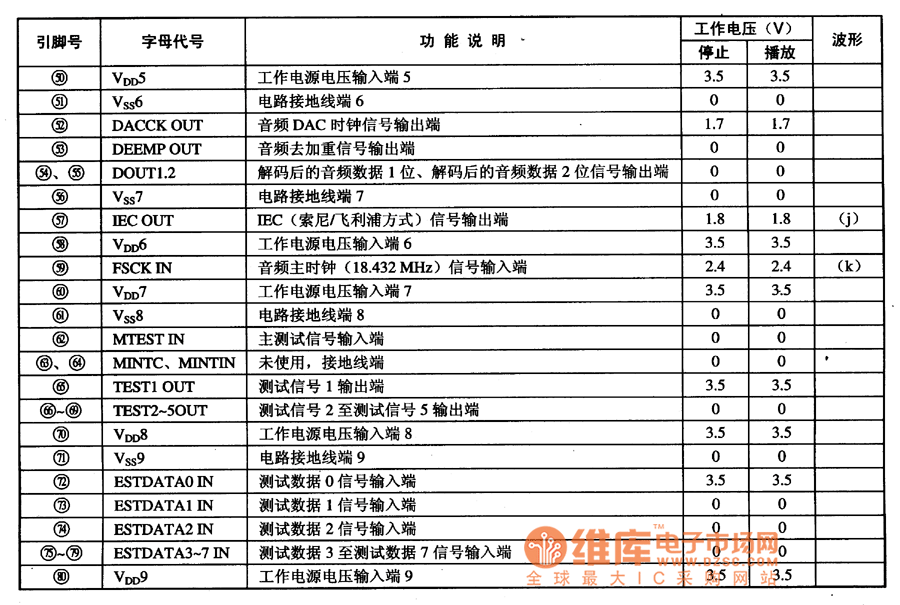

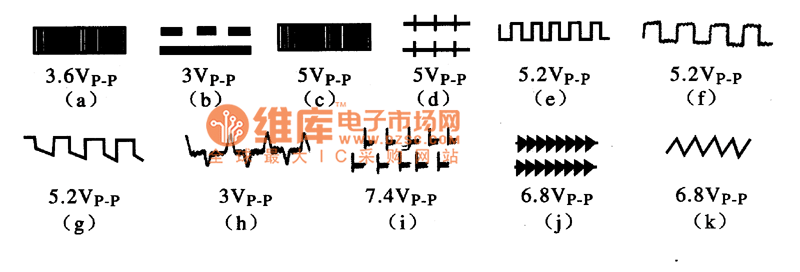

MN67730MH IC pin functions and data MN67730 IC critical pin wave MN67730MH is a digital DVD audio decoding integrated circuit produced by Panasonic andwidely used in DVD player movement of Panasonic movement series . 1. Features:MN67730MH integrated circuit includes MPEG-1 decoding circuit, MPEG-2 decoding circuit, AC-3 decoding circuit, linear PCM decoding circuit, constant voltage circuit, clock oscillation circuit, microprocessor interface data bus circuits and other ancillary circuitry.2. IC pin functions and data: MN67730MH integrated circuit is sealed in Quartet 80-pin package. The pin functions and data is listed in the Table, and the critical pin waveform is shown in the figure.
