Medium wave AM radio circuit compose of SL34 and SL315

Published:2011/5/5 21:25:00 Author:TaoXi | Keyword: Medium wave, AM radio | From:SeekIC

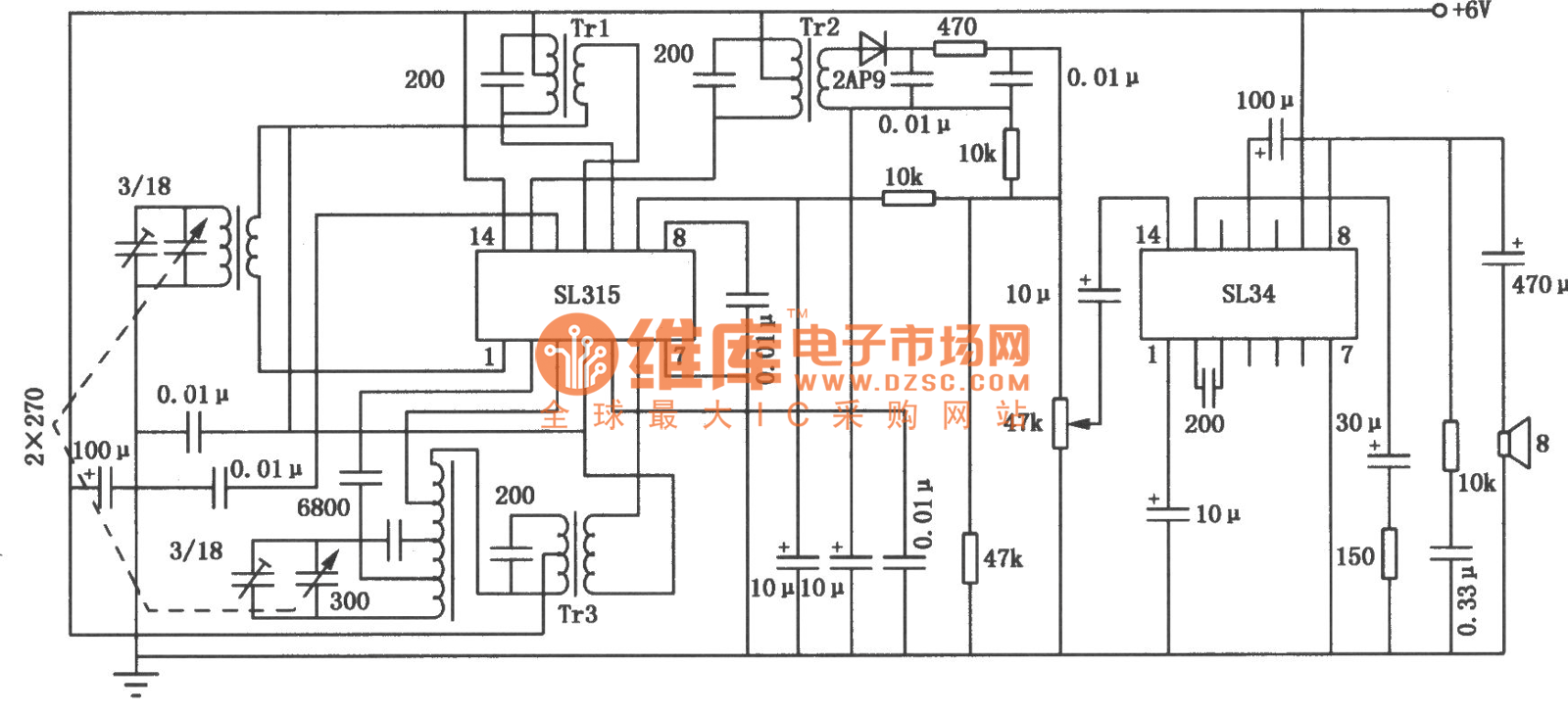

The SL33/34 is designed as the low voltage integrated audio power amplifier, this device has the features of low distortion and Low power consumption, the complete radio circuit is composed of the SL315 integrated frequency conversion intermediate amplification circuit and the SL33/34. The medium wave AM radio circuit compose of SL34 and SL315 is as shown in the figure.
