Minimum_component_phono_amp_with_common_mode_volume_control

Published:2009/7/23 1:36:00 Author:Jessie | From:SeekIC

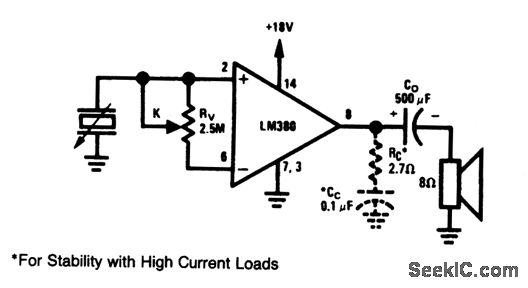

This circuit shows an LM380 as a phono amplifier with common-mode volume control.When in the full-volume position, the only source-loading impedance is the IC input impedance. This reduces to one-half the amplifier input impedance at the zero-volume position.
