NJM4558S--the dual computing amplifier circuit

Published:2011/6/9 8:16:00 Author:qqtang | Keyword: computing amplifier | From:SeekIC

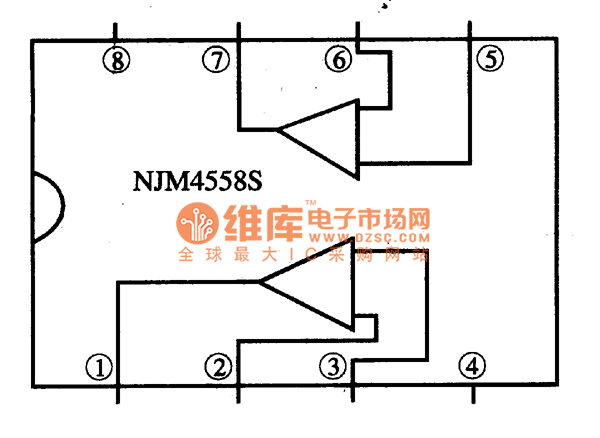

NJM4558S is a dual computing amplifier integrated circuit produced by JRC Corp., Japan, which is widely used in all kinds of areas, such as CD players, VCD players, DVD players, stereo equipment, electric auto control equipment, instruments, meters, all kinds of household appliances, computers and their screens, car power appliances and car stereos, cooling electric appliances, office electric appliances, etc.NJM4558S is in 8-pin dual line package, whose internal circuit is shown in the figure, and its pin functions and data are listed in the table.
