NPN_PHONO_PREAMP

Published:2009/7/15 2:53:00 Author:Jessie | From:SeekIC

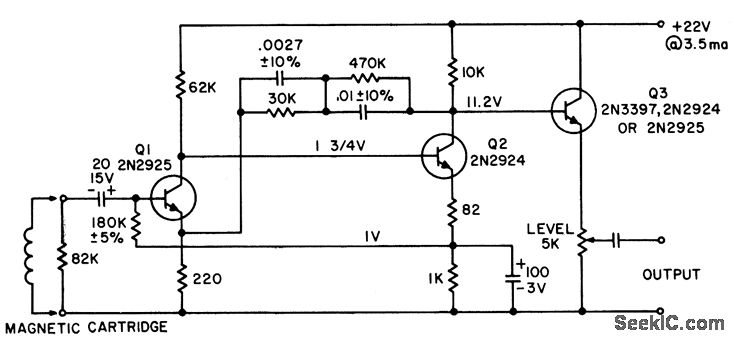

Input of 6 mv at 1 kc from magnetic cartridge gives 1 v output, which is 15 db below clipping level and 72 db above unweighted noise level. RIAA equalized output is within 1 db from 40 cps to 12 kc.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 257.
