ONWA KWEC44.1--the single chip microcomputer integrated circuit

Published:2011/6/8 22:05:00 Author:qqtang | Keyword: single chip, microcomputer | From:SeekIC

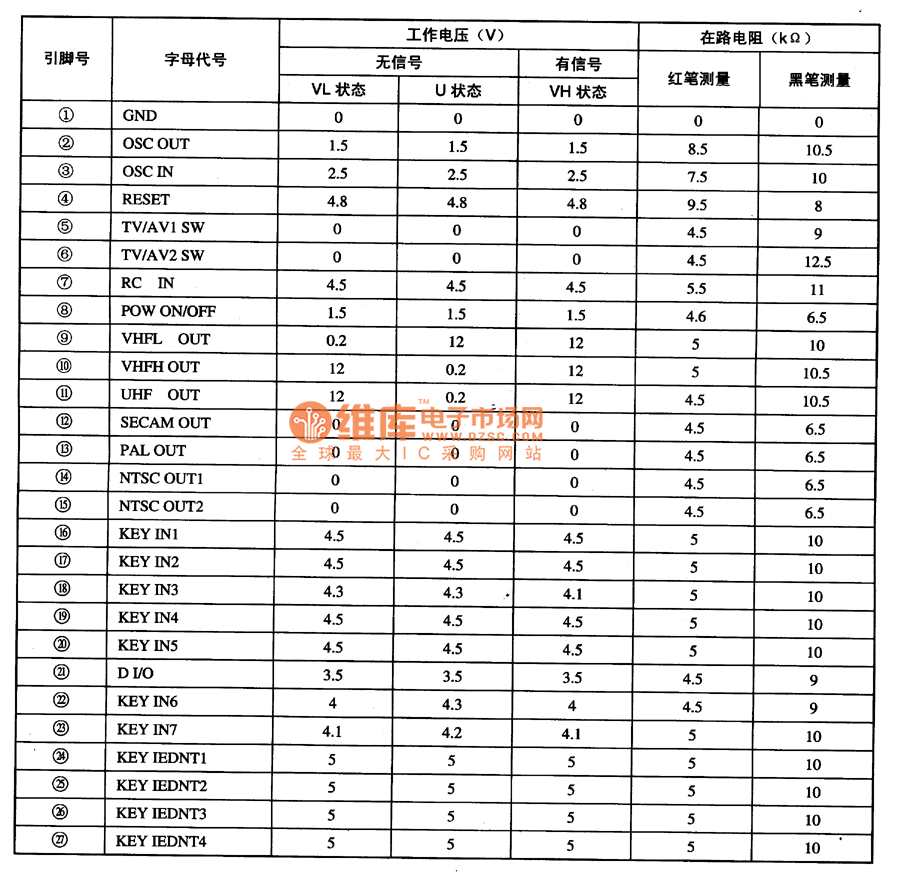

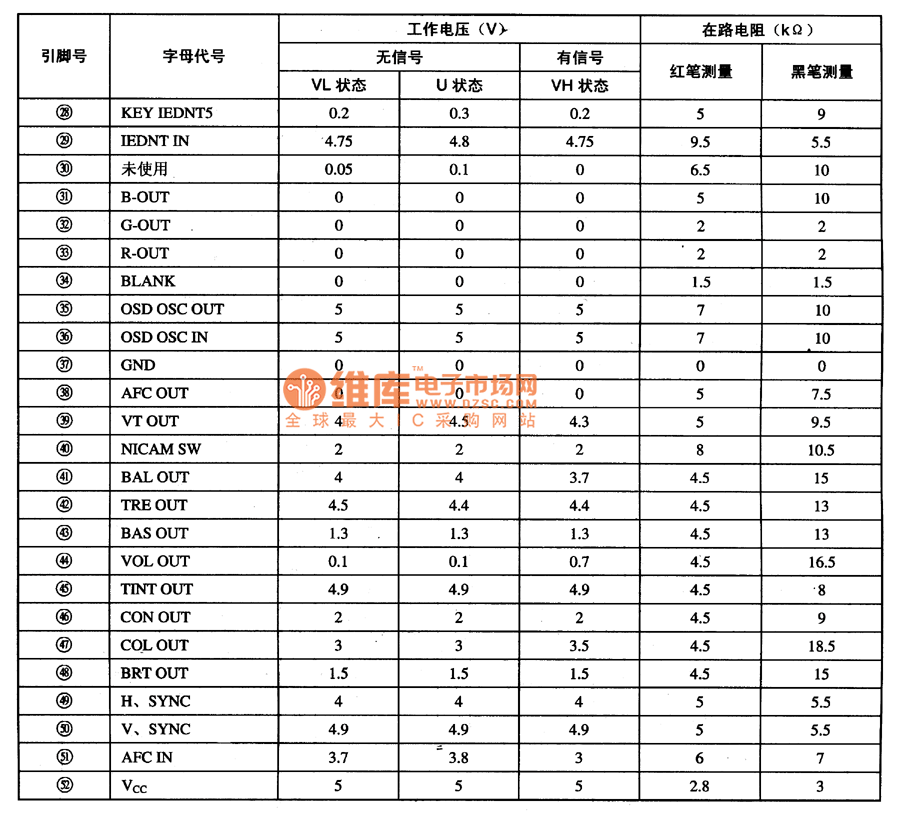

1.function featuresONWA KWEC44.1 consists of the CPU, system reset control circuit, clock oscillator circuit, key pulse generateing circuit, key order signal decoding circuit, screen symbol signal generating and processing circuit,TV/AV control circuit, system shifting control circuit, stand by/start up convert control circuit and other control and additional function circuit, etc.2.pin functions and dataONWA KWEC44.1 is in 52-pin dual line package, whose pin symbols and data are listed in the table.
