LM4911 No-output capacitor(OCL) power circuit diagram

Published:2011/3/23 1:40:00 Author:Rebekka | Keyword: No-output capacitor(OCL), LM4911, | From:SeekIC

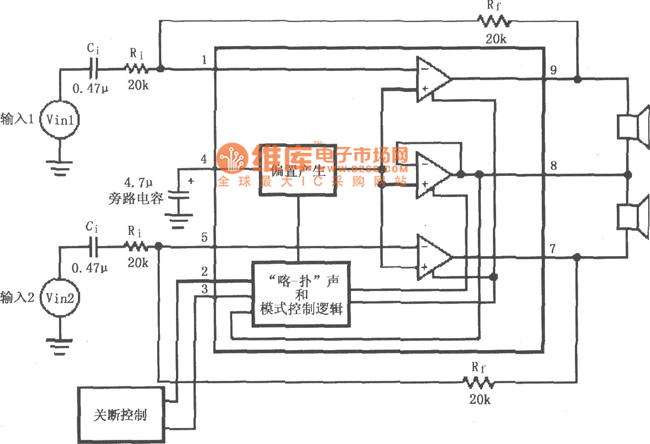

LM4911 No-output capacitor(OCL) power circuit diagram is shown as below. No-output capacitor(OCL) circuit is without the use of squelch control(Mute), because the speed of shutdown control(SD) is faster than squelch control(Mute) at the moment. The noise can be removed after shutdown. The max power dissipation of the no-output power capacitor is PDMAX=4VDD2／π2R.
