P83C266BDR-100--the single door microcomputer integrated circuit

Published:2011/6/9 21:17:00 Author:qqtang | Keyword: single door, integrated circuit | From:SeekIC

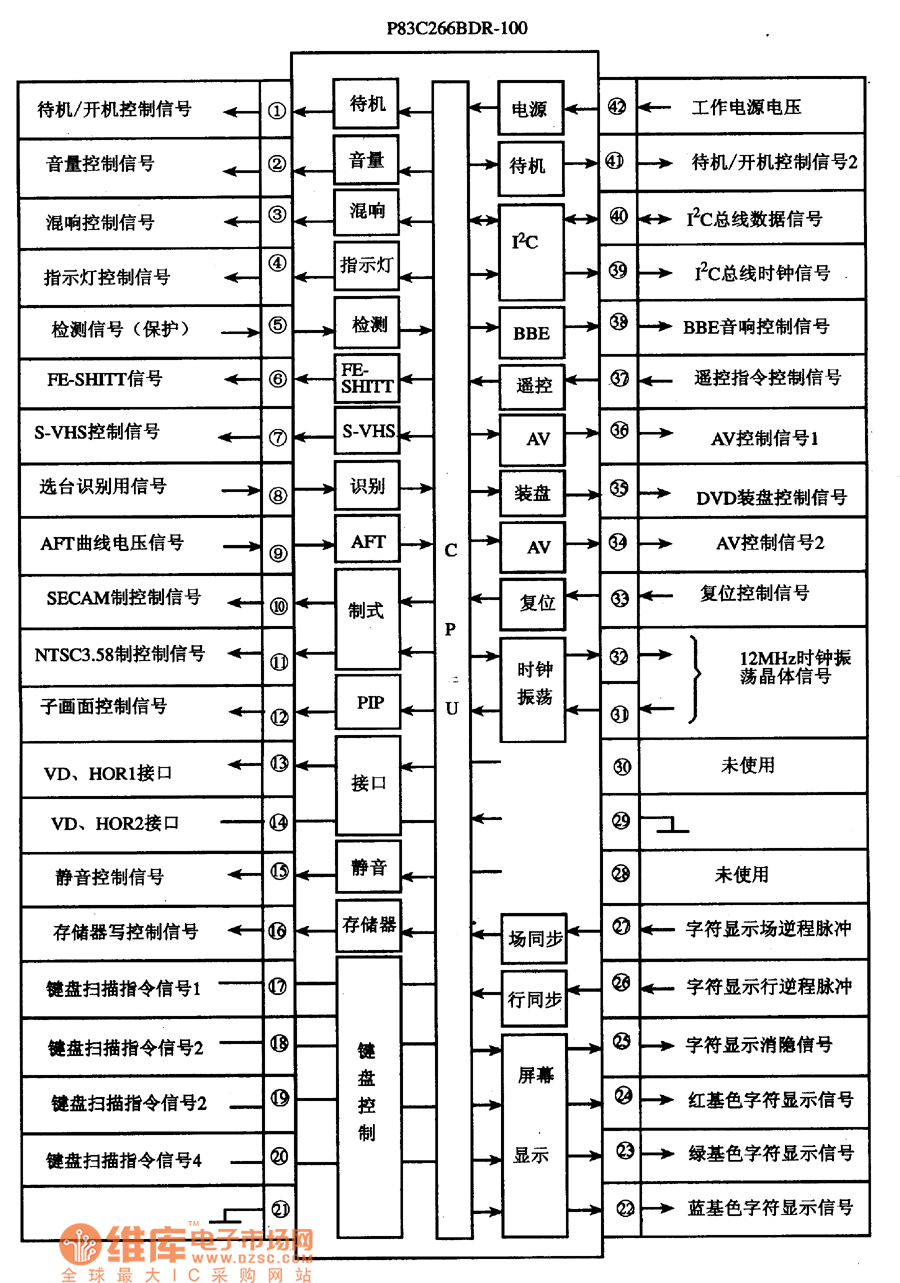

P83C266BDR-100 is a single door microcomputer integrated circuit produced by Philips, which is widely used in Changhong digital large screen color TV, etc.1.function featuresP83C266BDR-100 consists of the CPU, clock oscillating circuit, reset control circuit, key scanning order decoder, remote order signal process circuit, storage control circuit, I2C general control circuit, screen displayed letter generating and processing circuit, standby/starting control circuit and other control and additional circuits, etc.
