P87C766DT--the single chip microcomputer integrated circuit

Published:2011/6/8 21:56:00 Author:qqtang | Keyword: single chip, integrated circuit | From:SeekIC

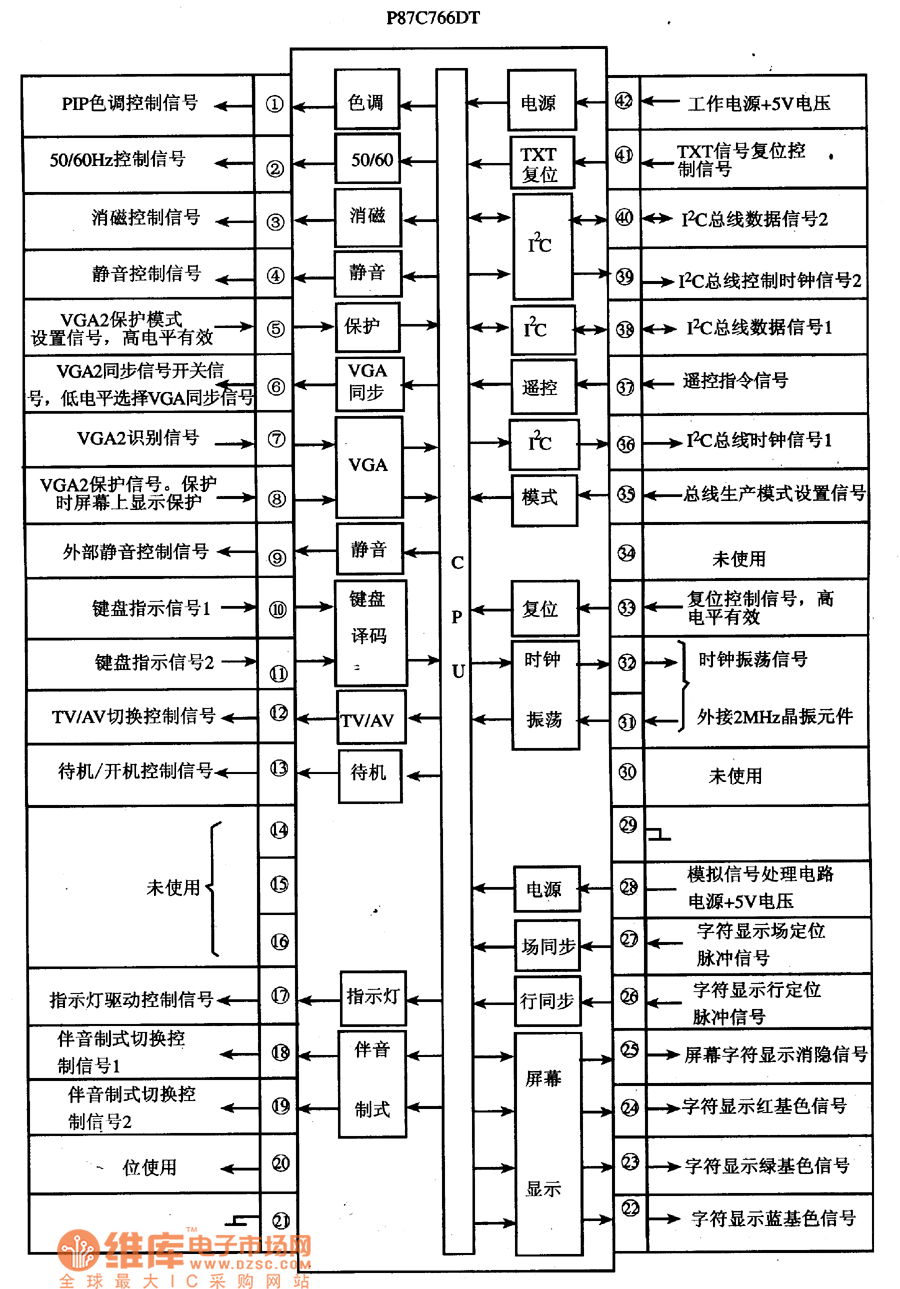

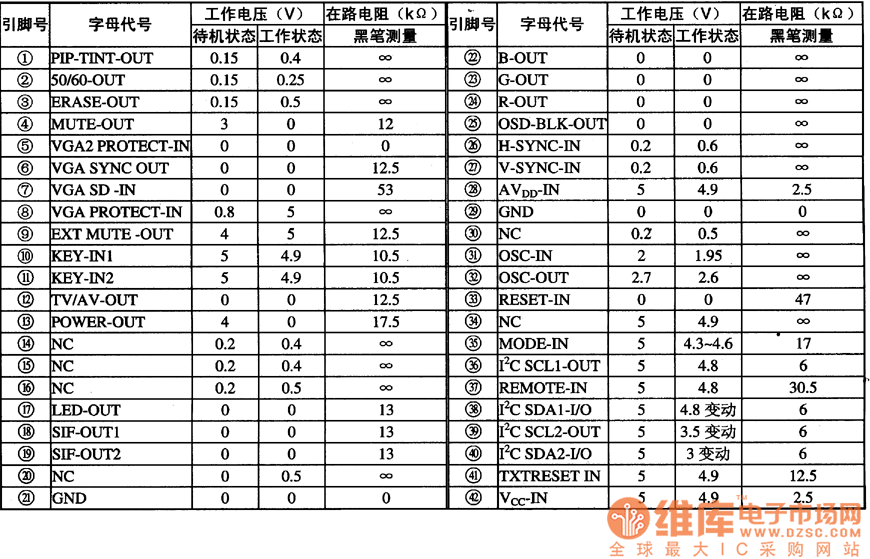

1.function featuresP87C766DT contains the CPU, reset control circuit, clock oscillator circuit, remote order signal process circuit, I2C general control circuit, key order signal decoding circuit, demagnetizing circuit, stand by/start up control circuit, screen display letter generating and processing circuit, system control circuit and other control and additional function circuits, etc.2.pin functions and dataP87C766DT is in 42-pin dual line package, whose pin symbols and data are listed in the table.
