PAL16R8A--the high speed control storage recognition integrated circuit

Published:2011/6/9 21:10:00 Author:qqtang | Keyword: high speed control, integrated circuit | From:SeekIC

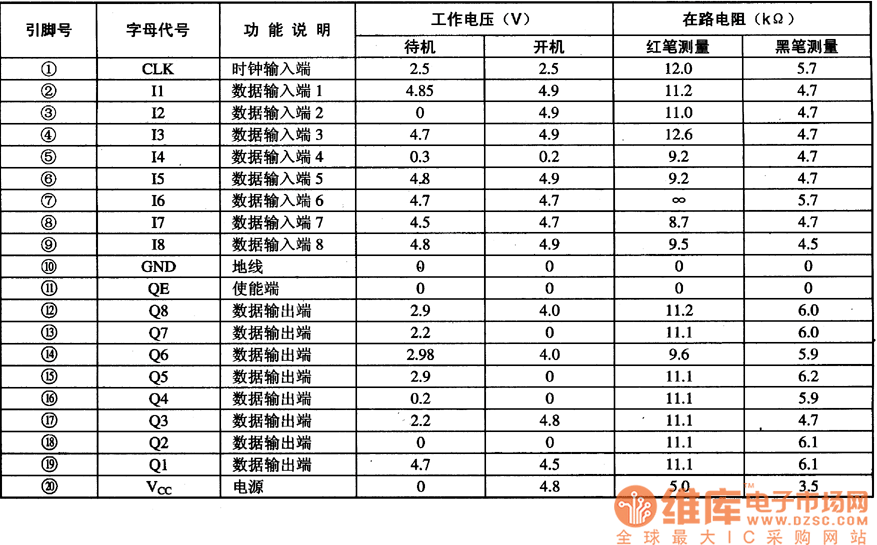

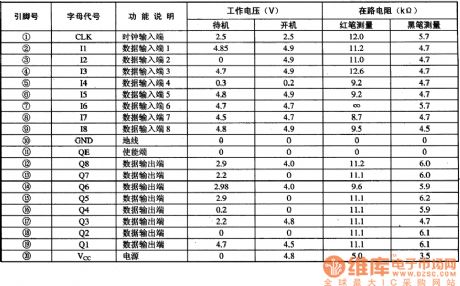

PAL16R8A is a high speed control storage recognition integrated circuit produced by Philips, which is used in Changhong project color TV sets.1.function featuresPAL16R8A consists of the clock circuit and data circuit, etc.2.pin functions and dataPAL16R8A is in 20-pin dual line package, whose pin functions and data are listed in the table.Pin functions and data of PAL16R8A
