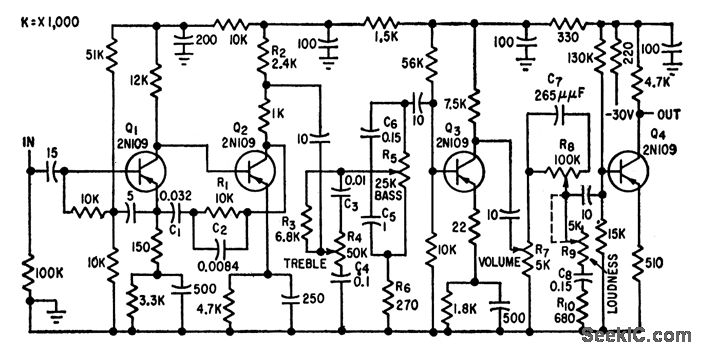

PREAMPLIFIER_FOR_DYNAMIC_PICKUP

Published:2009/7/14 22:43:00 Author:Jessie | From:SeekIC

Accepts signal from variable-reluctance cartridge.Includes RIAA frequency-correcting network, variable bass and treble compensation,volume control, and loudness control that attenuates midfrequencies as loudnesslevel is decreased, to emphasize lows and highs during soft musical passages.-R.Minton,Designing High-Quality A-F Transistor Amplifiers, Electronics, 32:24, p 60-61.
