PT2399--the digital reverberation integrated circuit

Published:2011/6/9 4:36:00 Author:qqtang | Keyword: digital reverberation, integrated circuit | From:SeekIC

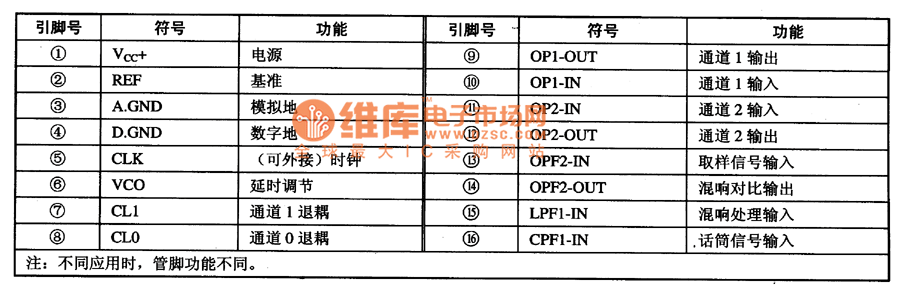

1.function featuresPT2399 includes the sampling signal process circuit, reverberation comparing process circuit, microphone signal process circuit, clock oscillating circuit, digital reverberation preset amplifier circuit, reference power supply voltage circuit, power supply stable circuit, reverberation delay circuit and other additional function circuits, etc.2.pin functions and dataPT2399 is in 16-pin dual in-line plastic package, whose pin functions are listed in the table, and its working parameters are listed in the table.The pin functions of PT2399
