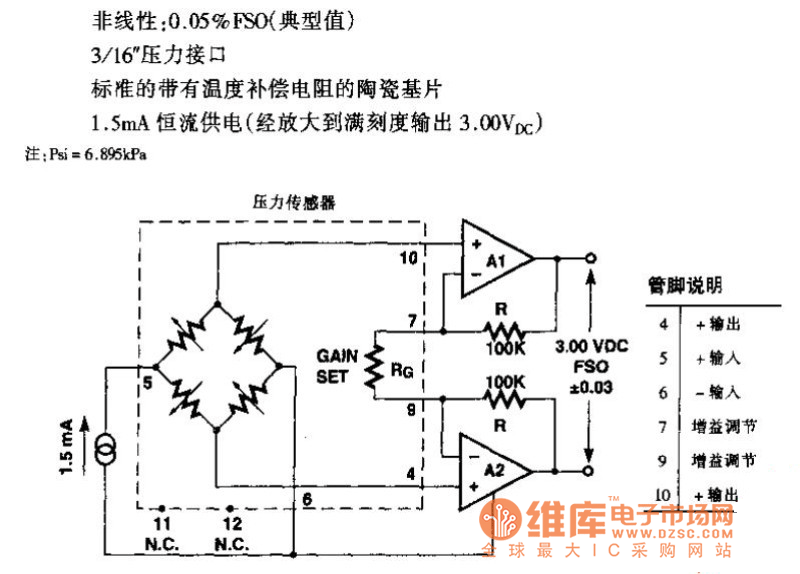

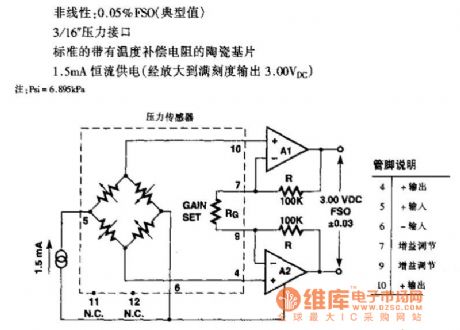

Pressure Sensor Detector Circuit

Published:2011/5/7 1:45:00 Author:Sue | Keyword: Pressure, Sensor, Detector | From:SeekIC

Nonlinearity:0.05%FSO(typical value) 3/16 pressure interface Standard ceramic substrate with temperature compensating resistance 1.5mA constant current(after amplifying can output full scare 3.00Vdc) ps.Psi=6.895kPa Pin Function: 4:+output 5:+input 6:-input 7:gain adjustment 9:gain adjustment 10:+output
