RING_COUNTER_USES_GATE_TURNOFFS

Published:2009/7/14 3:54:00 Author:May | From:SeekIC

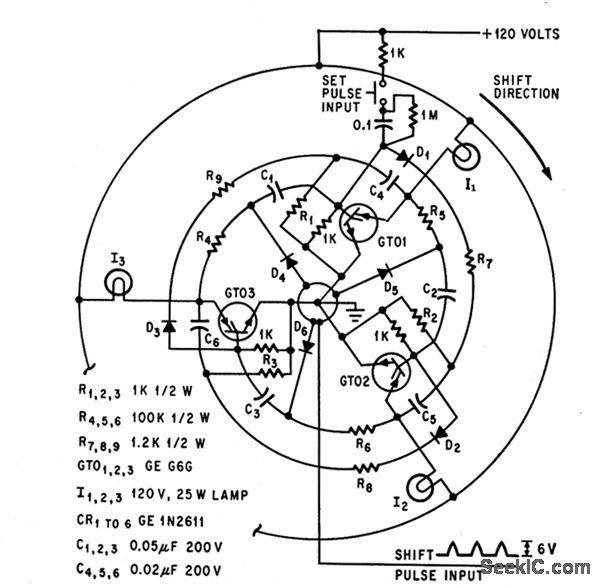

Closing of set pulse input switch turns on first gto. Applying voltage to its lam load. Each shift pulse input then transfers conduction to next gto and lamp.-D.R. Grafham. Now the Gate Turnoff Switch Speeds up D-C Switching Electronics.37:12,p64-71
