RUGGED_DESIGN_FOR_OCEANOGRAPHY

Published:2009/7/20 1:32:00 Author:Jessie | From:SeekIC

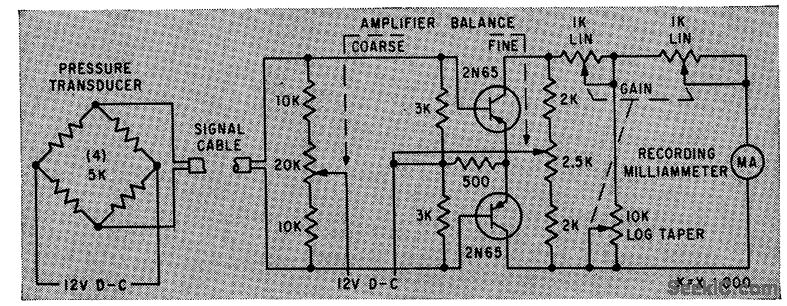

Can drive low-impedance recording galvanometer for long periods without auxiliary power. Bilateral symmetry of push-pull circuit using matched 2N65 transistors optimizes linearity and thermal stability. Although designed for d-c operation, response is fiat within 2 db up to 50 kc.-W. G. Von Dom, Transistor D.C Amplifier for Rugged Use in Field, Electronics, 33:1, p 85.
