Reversed-phase Combiner Amplifier Circuit

Published:2011/7/18 1:10:00 Author:Sue | Keyword: Reversed-phase, Combiner, Amplifier | From:SeekIC

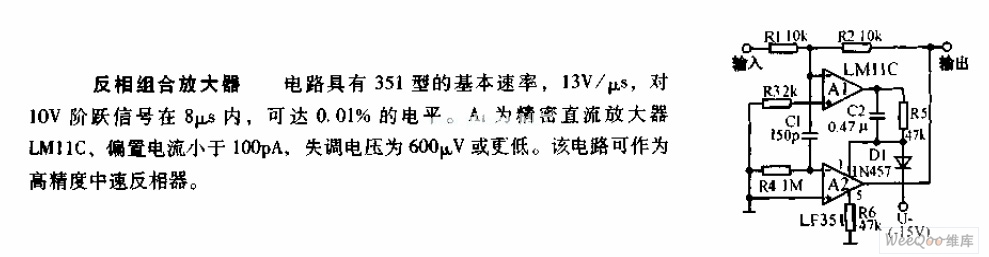

The circuit has a 351-type basic rate of 13V/μs which can reach 0.01% level when 10V step signal is beyond 8μs. A1 is precise direct current amplifier LM11C with a bias current lower than 100pA and a offset voltage equal to or lower than 600μV. The circuit can work as high-precision intermediate speed phase inverter.
