SA7280P/M2--the NICAM decoding integrated circuit

Published:2011/6/8 21:35:00 Author:qqtang | Keyword: NICAM, integrated circuit | From:SeekIC

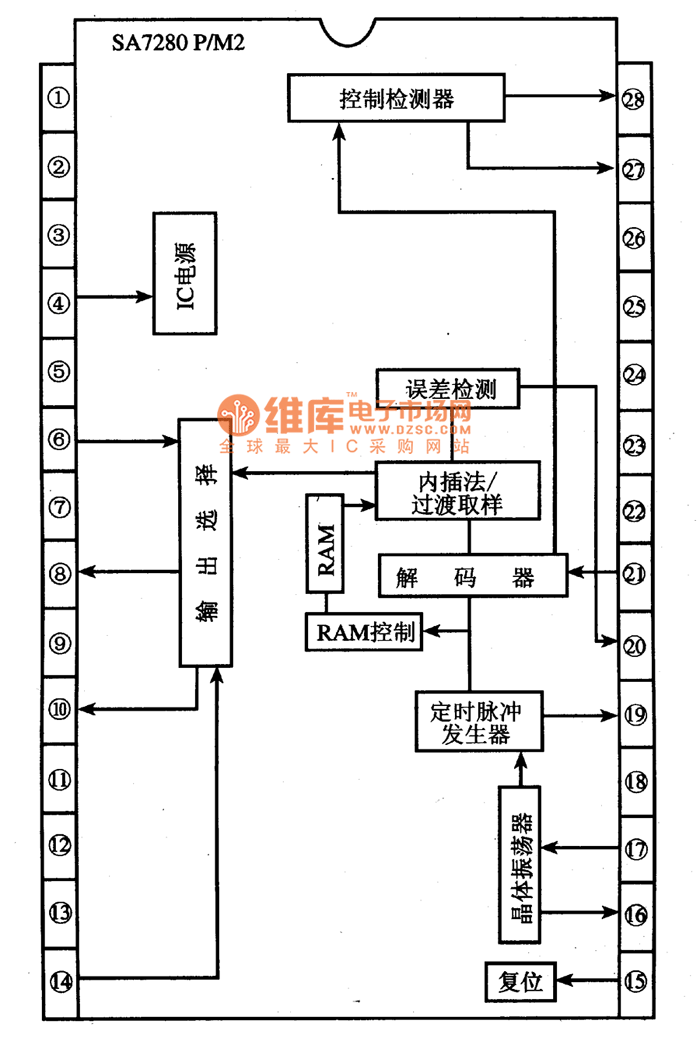

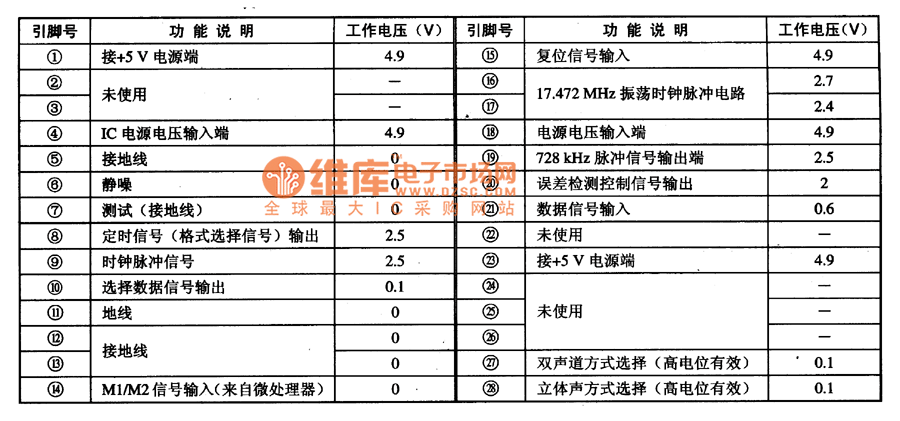

SA7280P/M2 is the NICAM decoding integrated circuit produced by Philips, which is often used in large screen color TV.SA7280P/M2 is in 28-pin dual line package, whose internal circuit is shown in the figure, and its pin functions and data are listed in the table, for reference. The internal circuit of SA7280P/M2The pin functions and data of SA7280P/M2
