SIMPLE_AM_RADIO

Published:2009/7/17 2:33:00 Author:Jessie | From:SeekIC

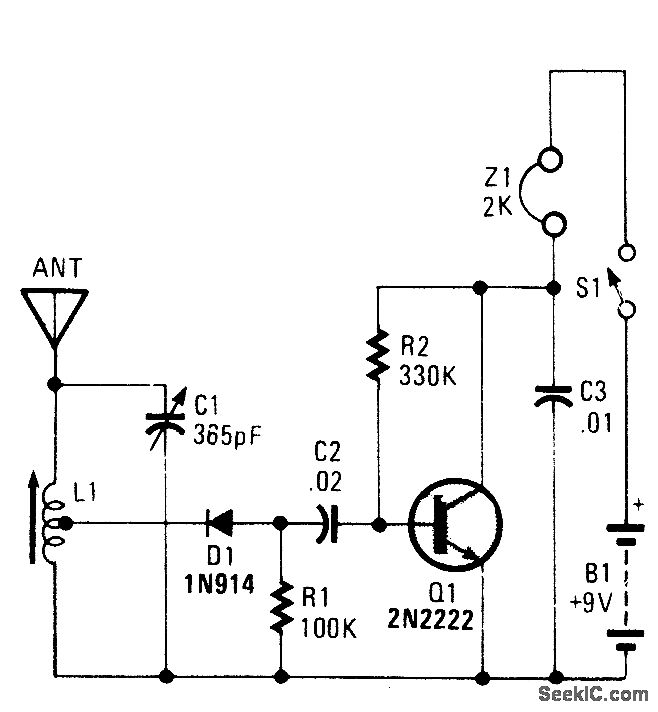

An AM radio can be built of a simple diode detector and an audio amplifier. A random length of wire always serves as an antenna. L1 is an adjustable ferrite loopstick of the type used in transistor radios.
