SINGLE_COIL_ORYSTAL_RADIO

Published:2009/7/12 23:45:00 Author:May | From:SeekIC

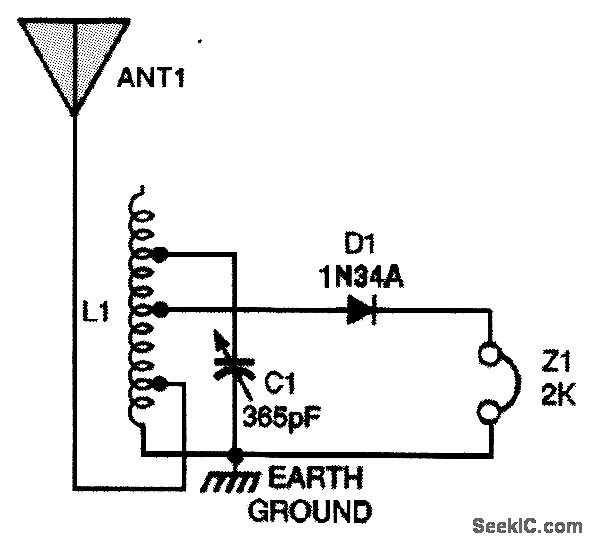

A starting setup for this circuit is as follows:Connect the antenna to the second tap up from the bottom of the coil (that's the end of the coil that's connected to ground). The diode should connect to about the fourth tap up from the bottom, and C1 should be attached to the seventh tap or so up from the bottom. Those tap positions might not be the best starting point for your antenna/ground arrangerttent. That doesn't matter, however, because to obtain the best results with the receiver at your location, you should experiment with all variables anyway.
