SRS effect processor circuit

Published:2011/4/28 0:51:00 Author:TaoXi | Keyword: SRS, effect processor | From:SeekIC

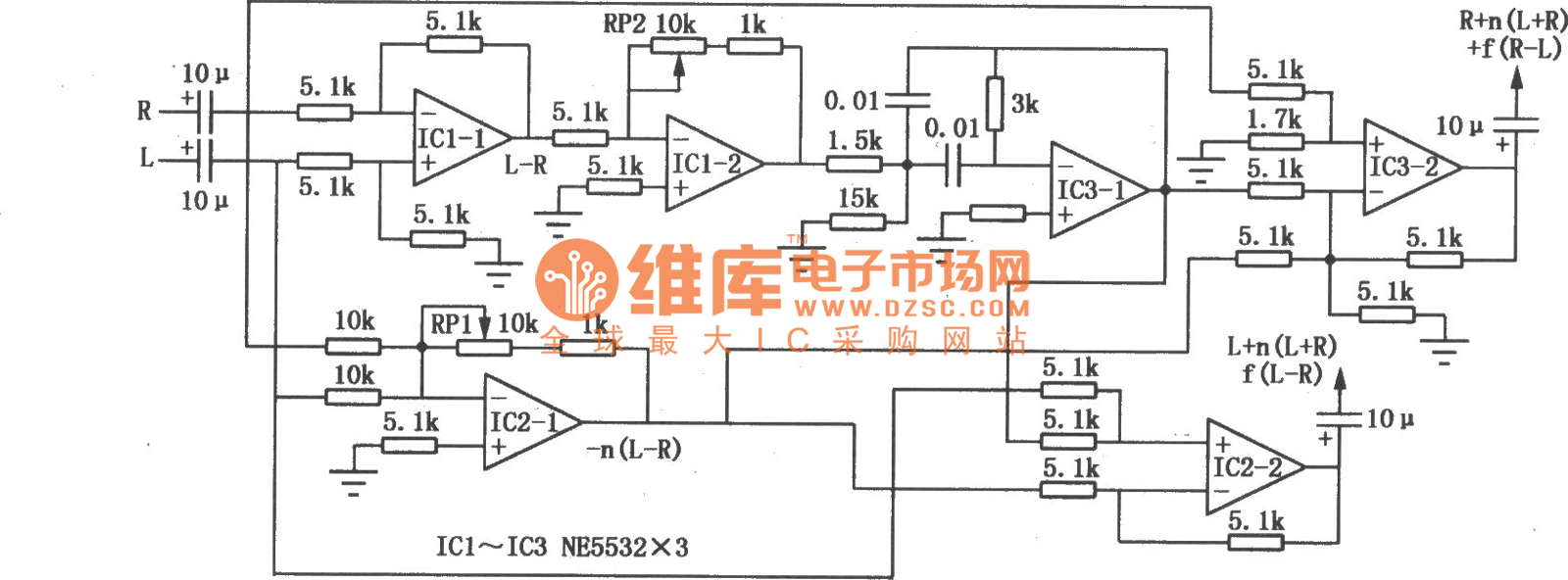

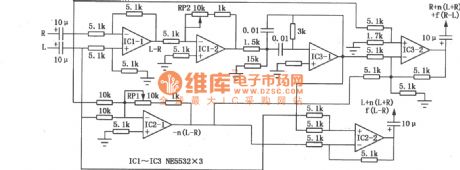

The SRS effect processor circuit's left and right channels output the L, R, n(L+R), ±f(L-R) mixed-signal. L+R means intermediate information, n means mixing ratio ( contrast adjustment); L-R means surround information, let it goes through the 300Hz ~ 10kHz filter, you can get the f(L-R), if you change the filter, you also change the sense of space . The circuit running stereo and Dolby surround software can eliminates the sense of level , and you can feel the surround sound that you never felt.
