SYNTHETIC_PUSH_PULL

Published:2009/7/15 2:29:00 Author:Jessie | From:SeekIC

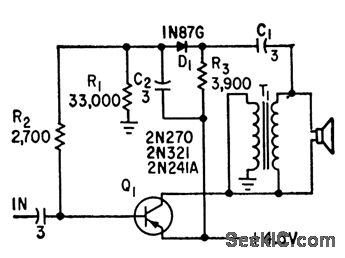

Single transistor in sliding class-A output requires no input transformer, while approximating push-pull class-B output stage.-J. A. Worcester, One. Transistor Push-Pull, Electronics, 32:24, p 74.
