Schmitt Trigger Used in Converting Circuit

Published:2011/5/9 5:15:00 Author:Sue | Keyword: Schmitt Trigger, Converting | From:SeekIC

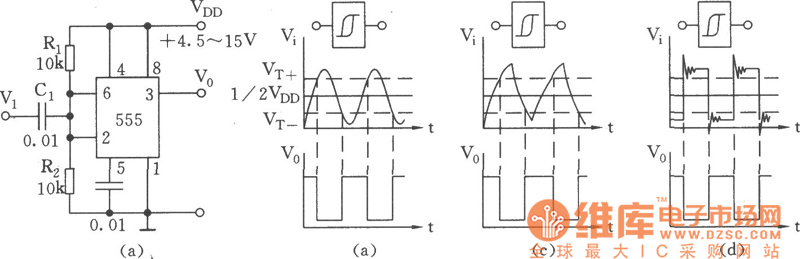

Schmitt trigger which is used in waveform transformation has extensive uses. Figure (a) shows the basic trigger circuit composed of 555. Figure (b),(c),(d) show the converting and transformation of different input signals and waveforms.
