TA31080--the integrated process circuit of analog audio signals

Published:2011/6/8 4:11:00 Author:qqtang | Keyword: integrated process circuit, analog audio signals | From:SeekIC

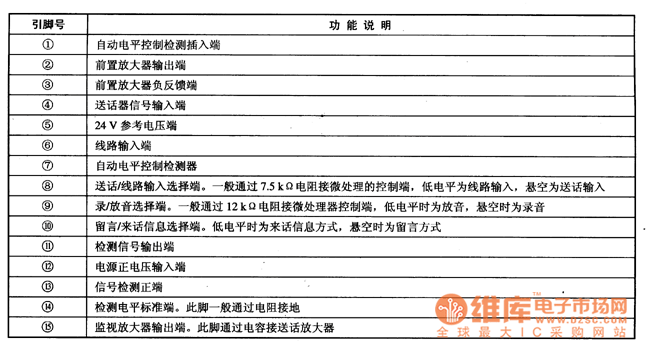

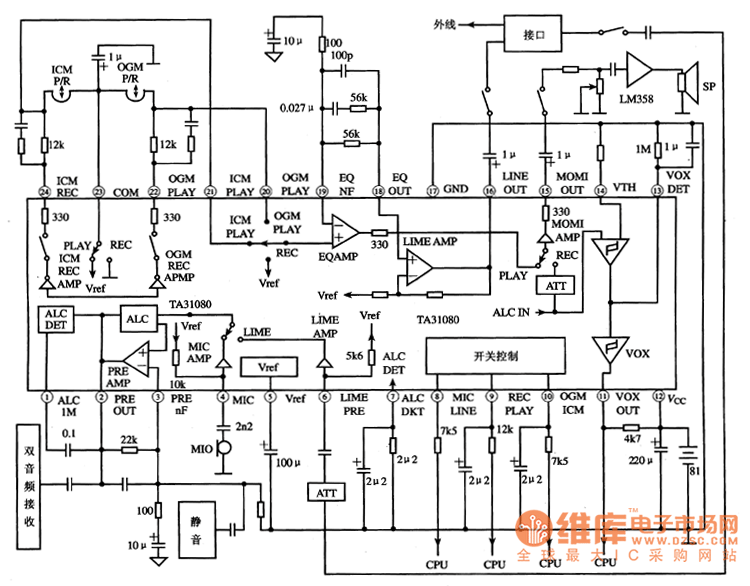

TA31080 is an integrated process circuit of analog audio signals produced by Toshiba, which is widely used in recorders.1.pin functionsTA31080 is in 24-pin dual line package, whose pin functions are in Table 1.Table 1. Pin functions of TA31080 2.typical application circuitThe typical application circuit of analog audio signal process, which consists of TA31080, is shown in Figure 1.Figure 1. The internal circuit and typical application circuit of TA31080
